Fly Saw Cutting C Purlin Forming Machine
.jpg "1(42).jpg")

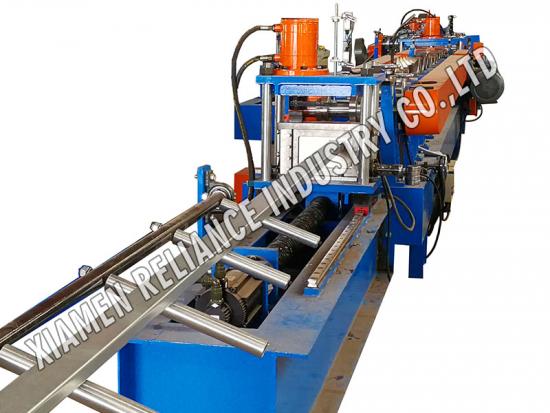

.jpg "2(41).jpg")
.jpg "3(38).jpg")

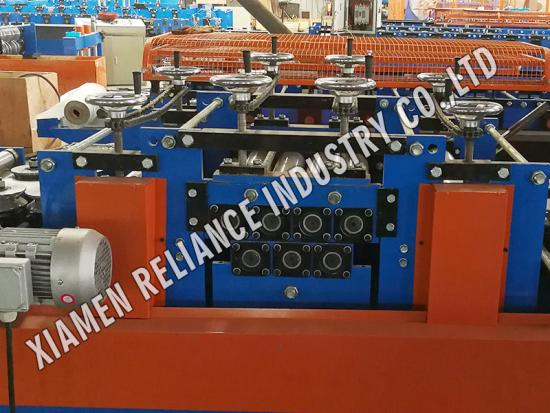

.jpg "4(38).jpg")

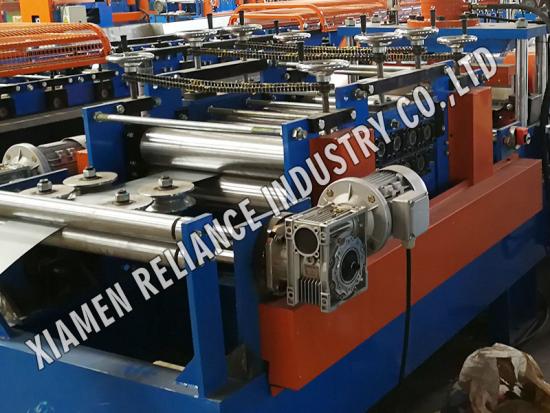

.jpg "5(36).jpg")

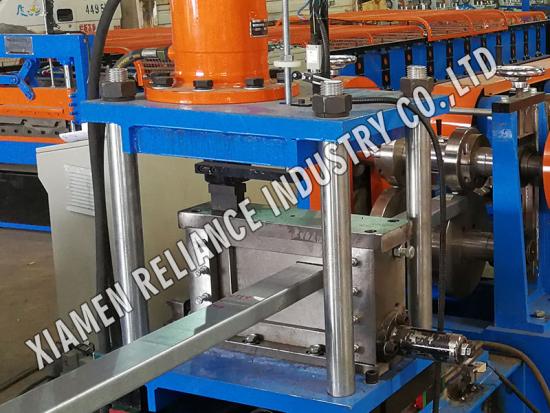

.jpg "6(31).jpg")
is able to produce various sizes of C purlin beams with no-stop-cutting solution…The size variation is via PLC control and machine auto changing.
PAYMENT:T/T,L/C,CASH
LEAD TIME:2~3Months
WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.
ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.
Description:
Fly Saw Cutting C Purlin Forming Machine5/High-speed Non-stop Cutting CU Purlin Machine/Fly Cutter C Purlin Machine :
This machine is widely used in PEB construction field. Its size range can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly punching accuracy, accurate dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.
Reliance offer on-site installation, training and maintenance if have demand.
Working Procedure:
Uncoiling– Leveling– Pre-shearing– Roll Forming Machine– Servo Fly Cutting– Auto stacker

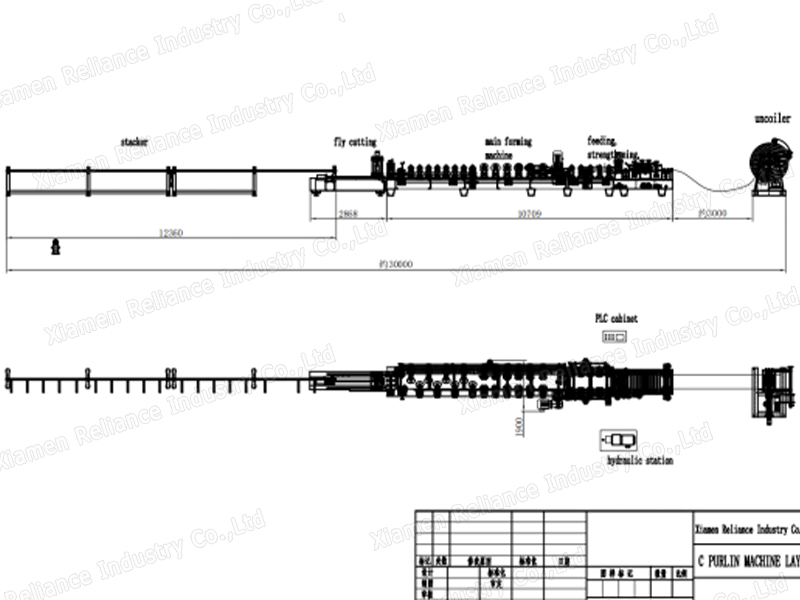

Layout of Production Line:
.jpg "11(36).jpg")
Technical Details:

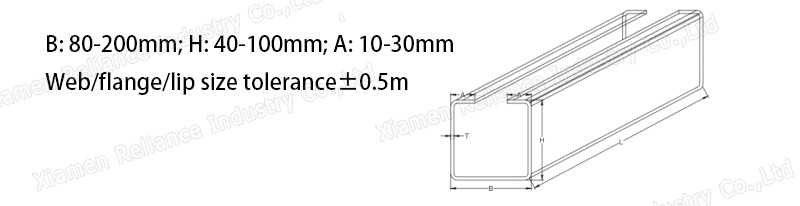

Available produced purlin sizes:
.jpg "22(29).jpg")
Machine Specifications | |
Weight | 13600KGS |
Sizes | 30*1.9*1.6M |
Color | Main machine color: Blue |
Mesh cover: Orange | |
Suitable Raw Material | |
Material | Galvanized /HR/CR Mild Steel |
Thickness | 1.0~3.0mm |
Yield strength | 250-550Mpa |
Main Technical Parameters | |
Forming roller station quantity | 15 stations |
Material of rollers | Cr12 mould steel with quenched treatment |
Diameter of shafts | ф75mm |
Material of shafts | 45﹟ casting steel |
Line forming speed | 25m/min |
Cutting die material | Cr12 mould steel with quenched treatment |
Control system | PLC（Siemens）, Touch Screen（Siemens）, Inverter (Schneider), Encoder（Omron） |
Line power requirement | Main driven motor: 22KW*1 |
Size changing motor: 1*1.5KW, 2*0.75KW | |
Hydraulic Pack motor: 7.5KW | |
Electric voltage standard | As per customer requirements |
Main Components:
5Ton hydraulic uncoiler
Hydraulic expanding mandrel and motor driven rotation
Work coil width: max 600mm
Pre-leveling & Pre-cutting Device
The section firstly making the strip material flat before feeding into roll forming machine
The pre-cutting device only use during exchange coil strips
Main roll forming machine
Driven type: gear sprocket with chain connection
Standard stand frame design with full mesh cover around main forming machine
Hydraulic no-stop-cutting section
Post cutting for c profiling sheet, each size equipped on cutting blade
PLC control cabinet
All international brand elements composited and qualified system
With portable controller for convenient work usage
Production run out table
Handel forming sheets for packing
Special Features
Auto size variation for C profiles: Manual input control system setting, machine will size variation automatically. Quickly、easier and convenience.
Only input data in touch screen can adjust any size automatically, by motor driving stations moving accurately on linear guiderail with encoder.

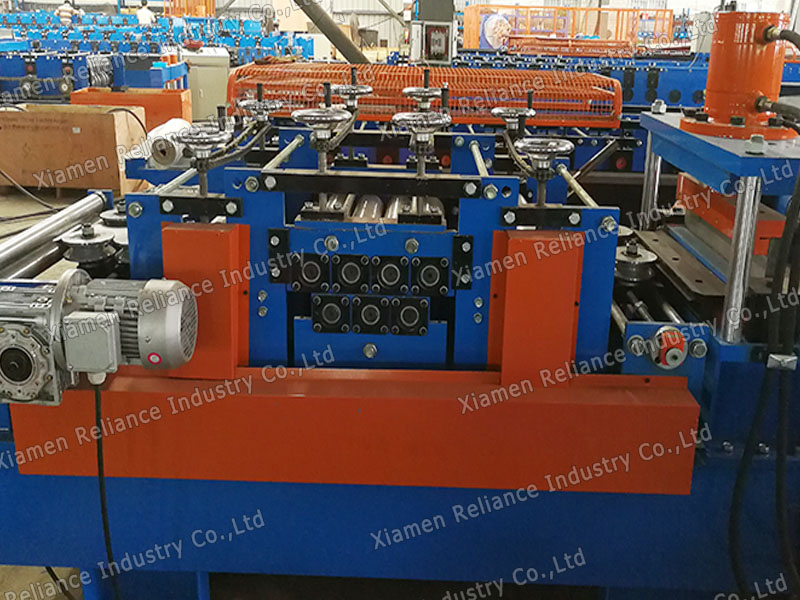

c purlin forming machine no stop to cut:
.jpg "33(26).jpg")

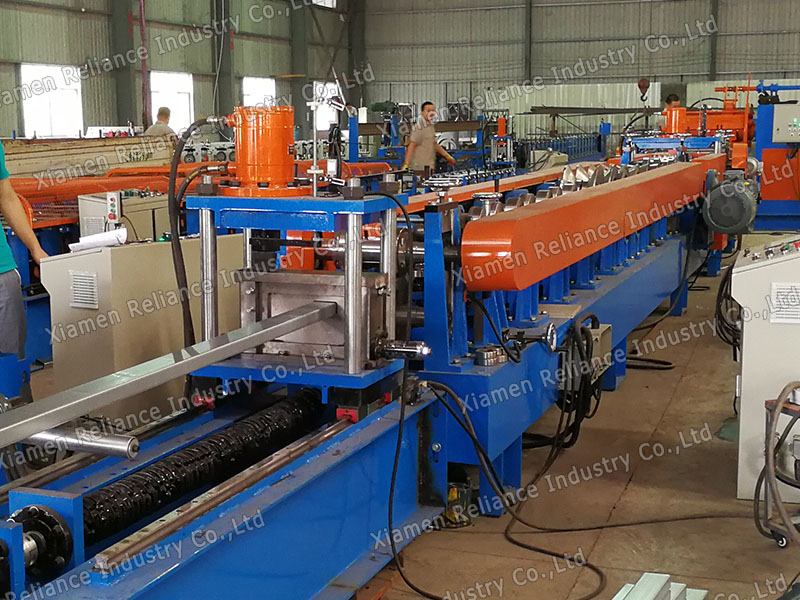

no stop cutting c purlin roll forming machine：
.jpg "44(20).jpg")

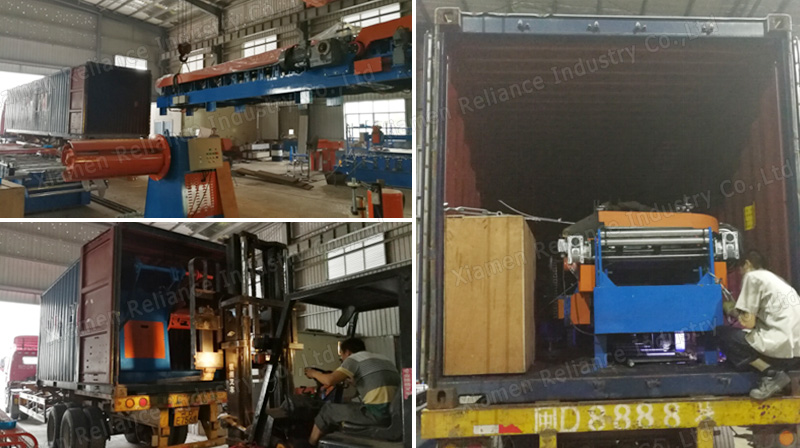

Packaging Photos:
.jpg "55(17).jpg")
