Heavy Gauge Steel Framing Machine

  • 1(41).jpg
  • 2(40).jpg

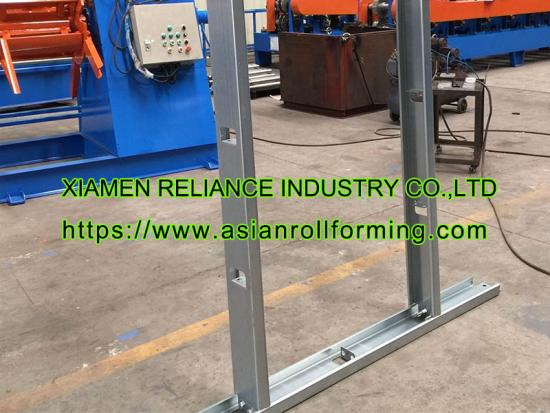

  • 3(37).jpg
  • 4(37).jpg

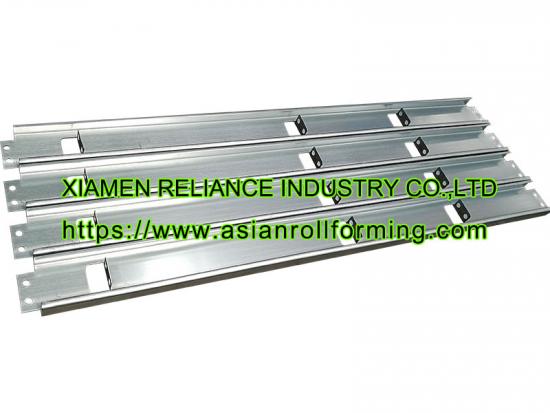

  • 5(35).jpg

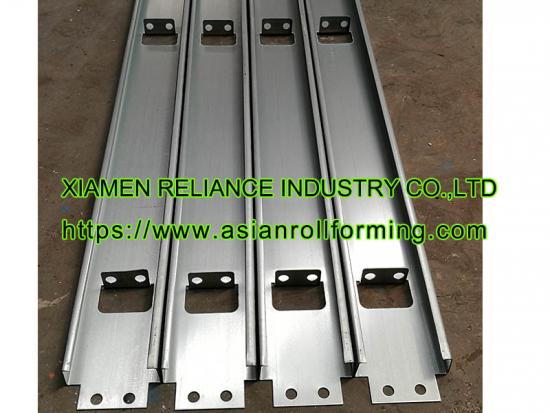

  • 6(30).jpg

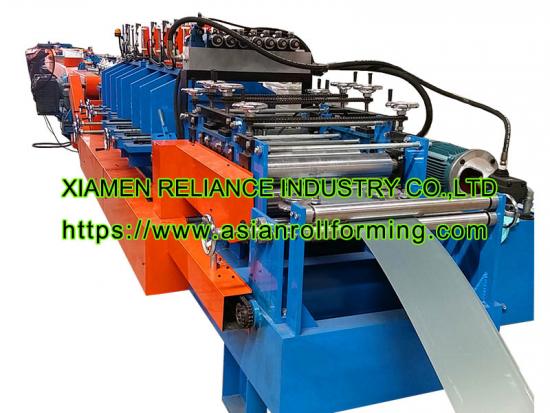

Heavy Gauge Steel Framing Machine/Steel Framing Machine/Light Gauge Steel Framing Machine is used for producing different sizes of heavy gauge steel framing that for wall stud usage.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:



Heavy Gauge Steel Framing Machine/Steel Framing Machine/Light Gauge Steel Framing Machine:



The heavy stud can be fabricated from various material thicknesses and in almost any length. With highly inline precision punching automatically and cut to length, the forming line capable to produce various pattern composition of steel framing systems.



Reliance offer on-site installation, training and maintenance if have demand.


Joint solution:

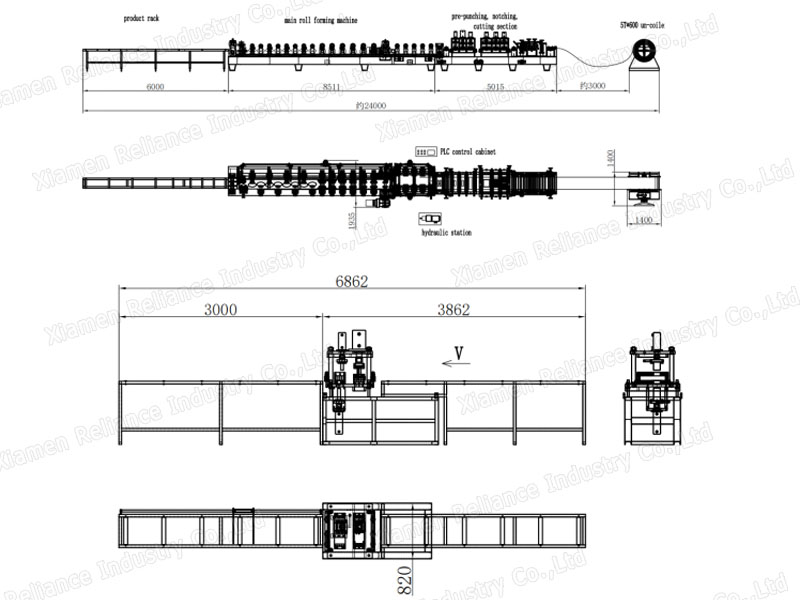

Line Layout :



Workable material thickness: 1.2~3.0mm; Cold-strip steel, GI, GL.

Yield strength: 350~550Mpa


The production line system includes:

5Ton*600mm Hydraulic Uncoiler

Pre-leveling Device for strengthening material

Pr-punching & Pre-notching & Pre-cutting section with multiple die compositions

C Stud Forming machine with auto size adjustment

Electrical control system

Product run out table

Light Gauge Steel Framing Machine:

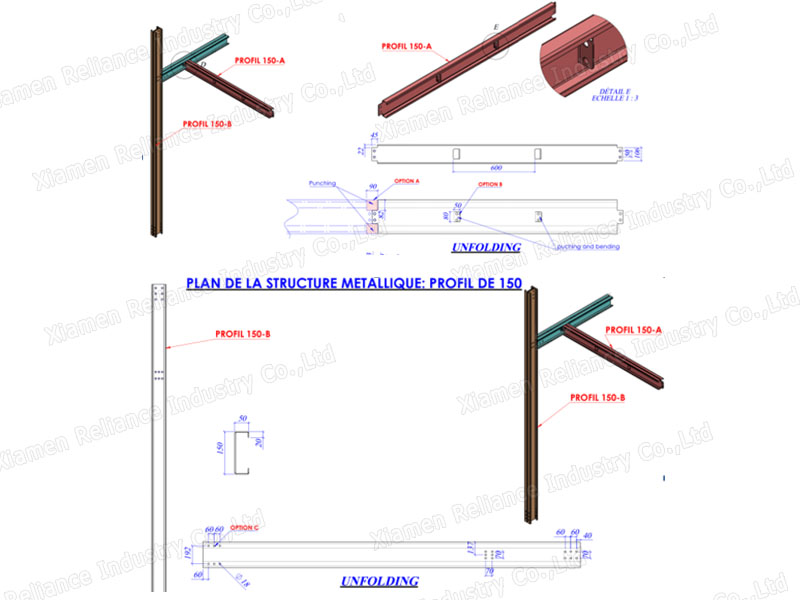

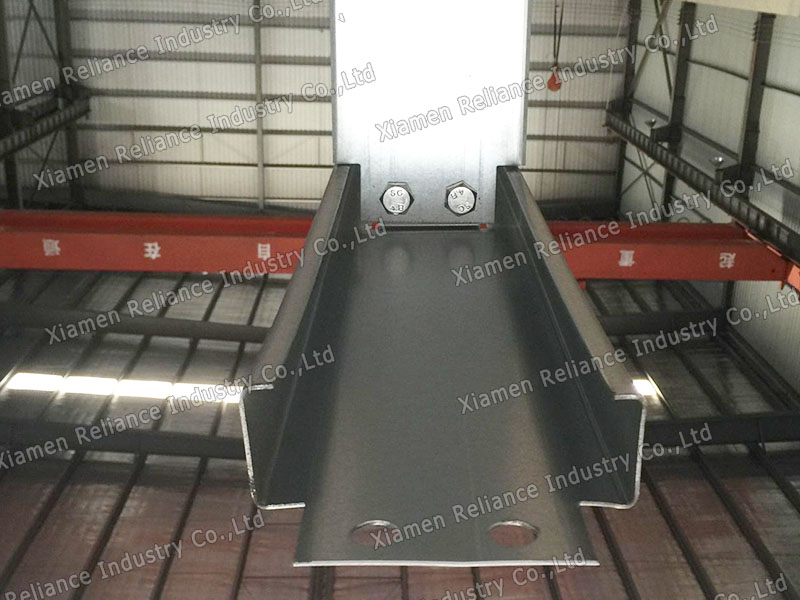

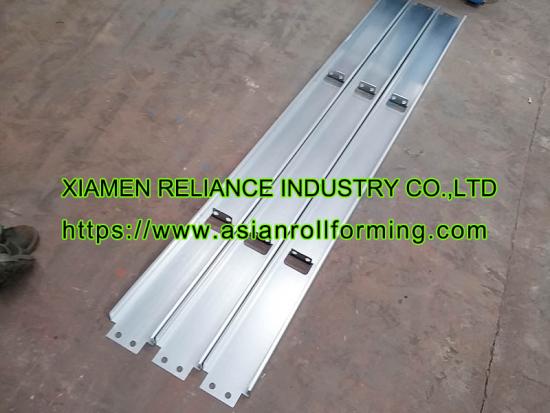

large light gauge steel wall stud:

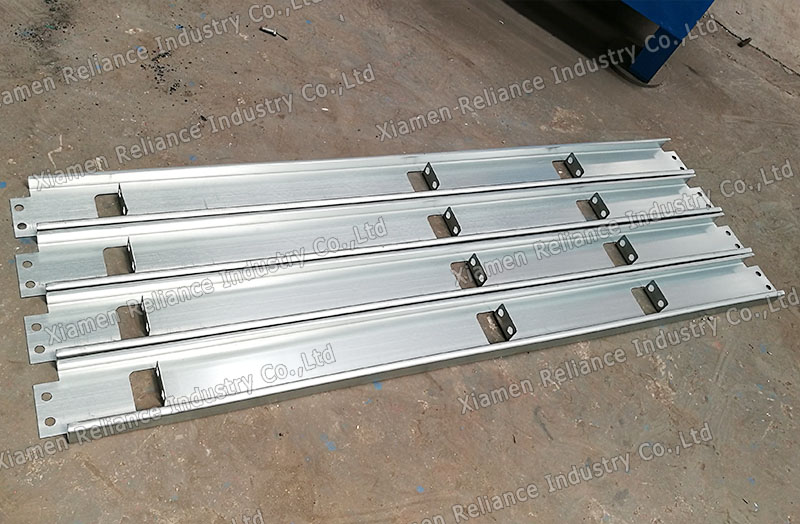

steel stud heavy gauge:




Advantage Features

Forming and cutting at any required length with pre-set quantity automatically.

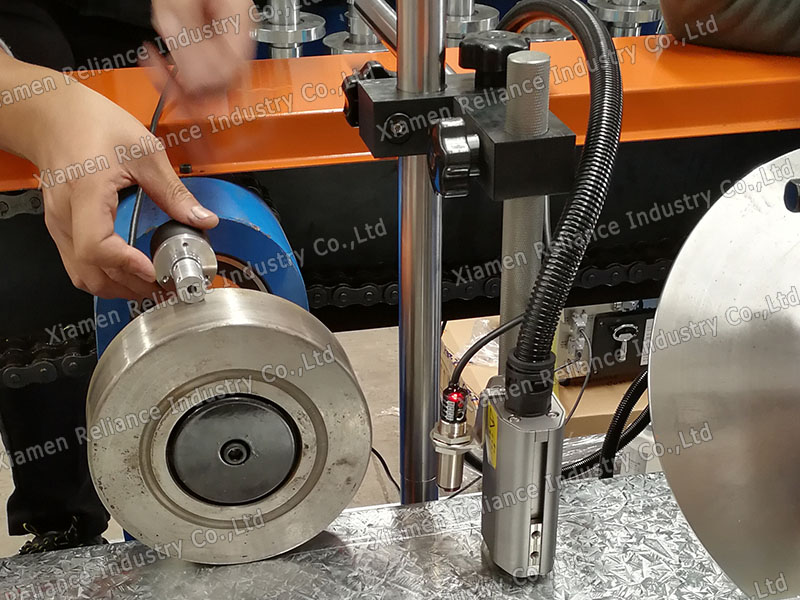

The encoder will record signal feedback and showing exact length of product.

The total length of finished coil is able to calculate via control panel.

Steel rollers are fabricated by CNC precision machine and hard chrome coated.

Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

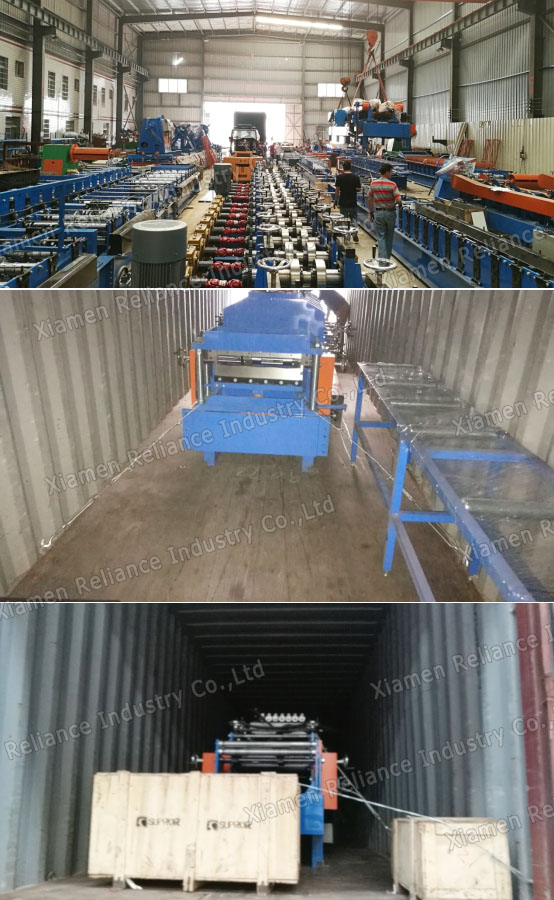

Loading Photos:
