ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

Description:

Floor decking machine/metal floor decking machine/floor deck roll forming machine/metal floor deck machine:

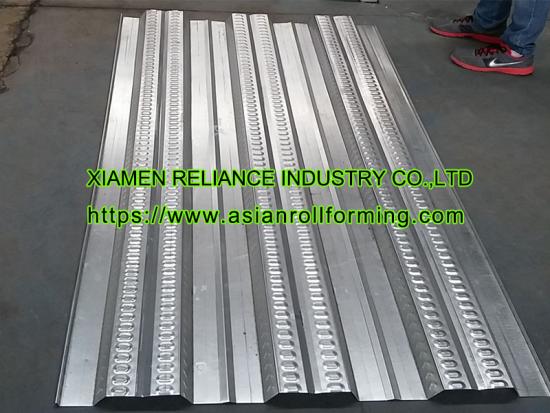

The metal decking floor is made of cold-formed steel sheet. It widely used in PEB construction floor systems for supporting the concrete or insulating membrane of roofing.

It can be fabricated from various material thicknesses and in almost any length. Floor decking machine is a modern, pre-eminent solution for concrete floor work.

Working Procedure:

Uncoiling– Hydraulic Pre-cutting (Optional)- Roll Forming Machine– Cutting– Collecting

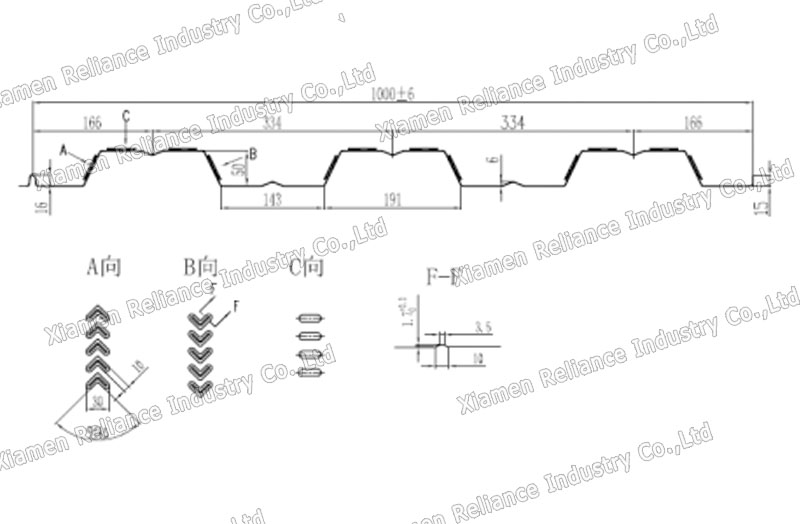

Profile drawing:

Material Thickness: 0.6-1.2mm

Applicable material: GI, CR Steel;

With yield strength 350~550Mpa

Machine Components:

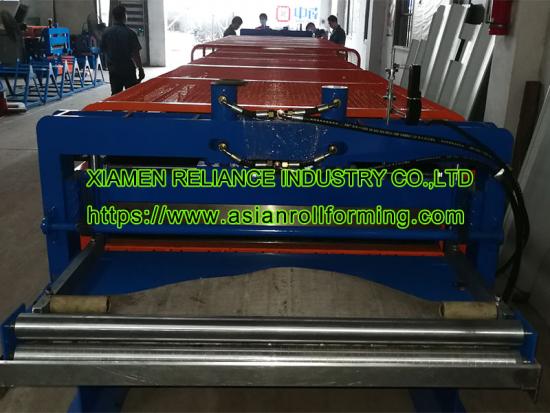

Feed Guide Device & Hydraulic Pre-cutting device

Smart cut control, to cut off the end of the final piece of sheet only

Working thickness up to 1.2mm

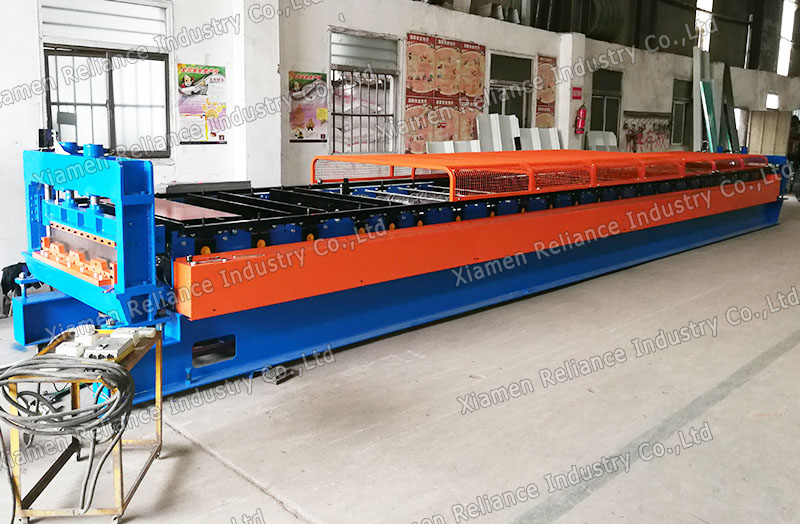

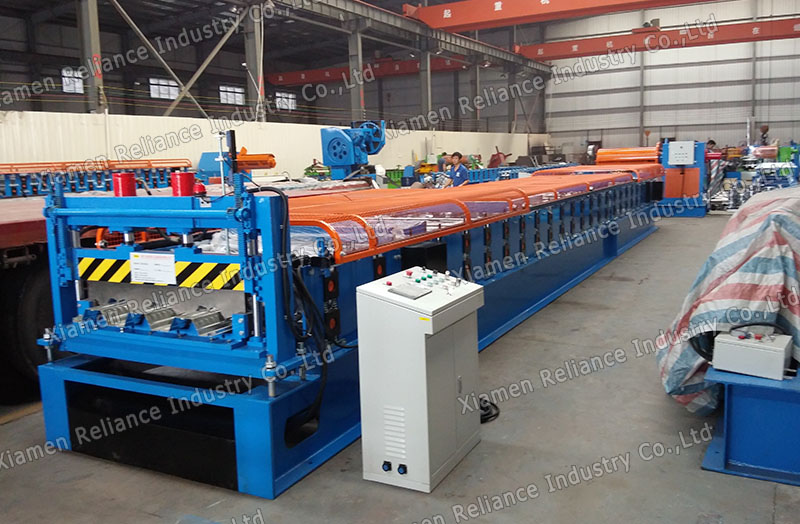

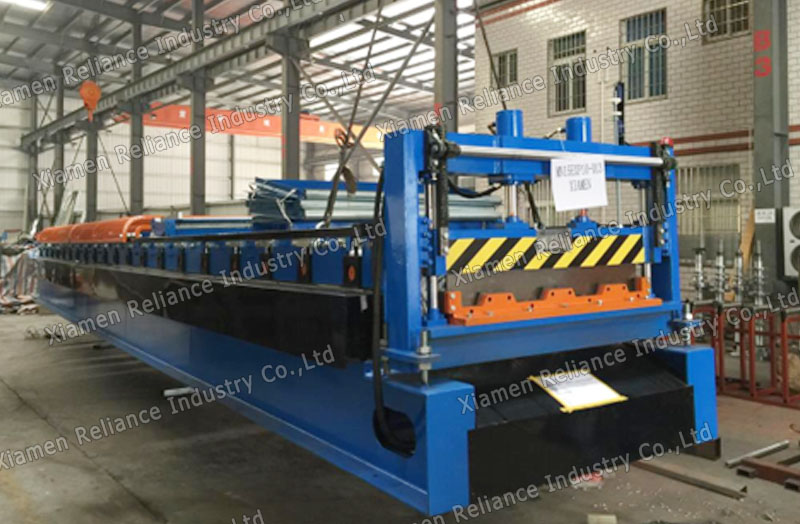

Main Forming Machine:

With feeding material guide, body base frame made of H frame steel by welding

Side wall plate thickness: Q235 t20mm

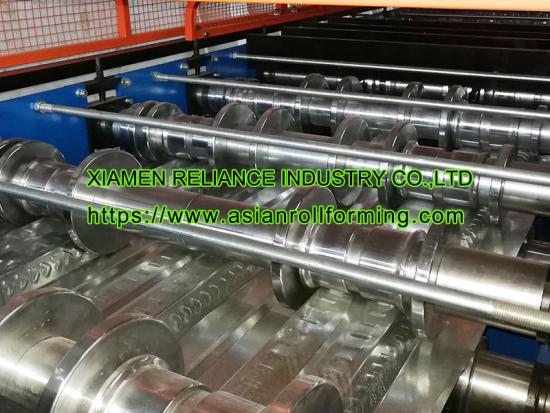

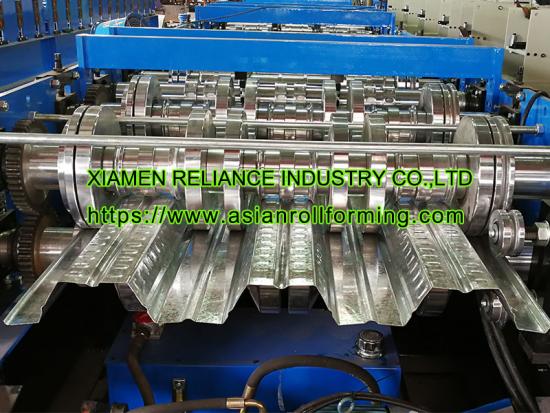

Rollers manufactured from 40Cr Steel, CNC lathes, hard Chrome Coated

with thickness 0.04~0.05mm

Shafts Diameter=ф95mm, precision machined

Gear/Sprocket driving, 20-step to form

Main Motor=11KW*2, Frequency speed control

All the screw bolts with grade 8.8

Max line speed 18 m/min (Not include cutting time)

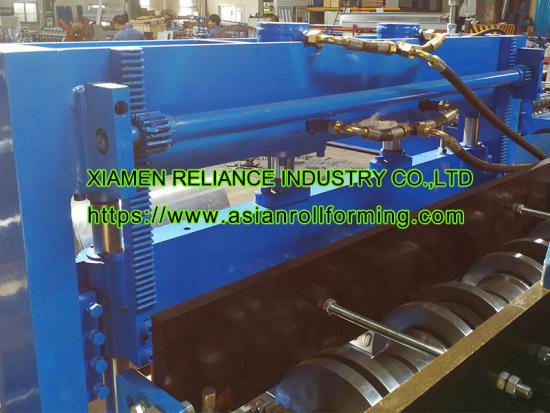

Post Hydraulic Cutting Device :

Post to cut, stop to cutting, two pieces type of cutting blade design, no blanking cut

Hydraulic motor: 5.5KW ;

Cutting tool material:Cr12, Heat treatment to HRC58-62 degree

PLC Control System :

Control The Quantity And Cutting Length Automatically

Input The Production Data (Production Batch, Quantity, Length, etc.) On The Touch Screen,

Then machine can proceed the production automatically.

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor,

Thermal Relay: Siemens/Schneider Cut-to-Length Tolerance≤±2mm

Control Voltage 24V

------------------------------------------------------------------------------------------------------------------------------
