Water Gutter Forming Machine

  • 1(16).jpg
  • 2(15).jpg
  • 3(12).jpg
  • 4(12).jpg

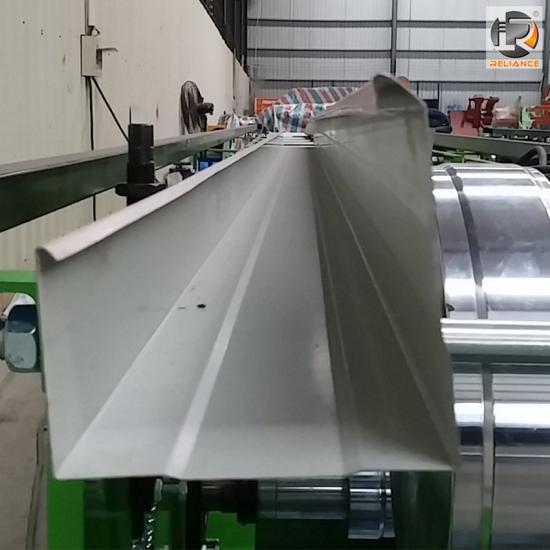

  • 5(10).jpg

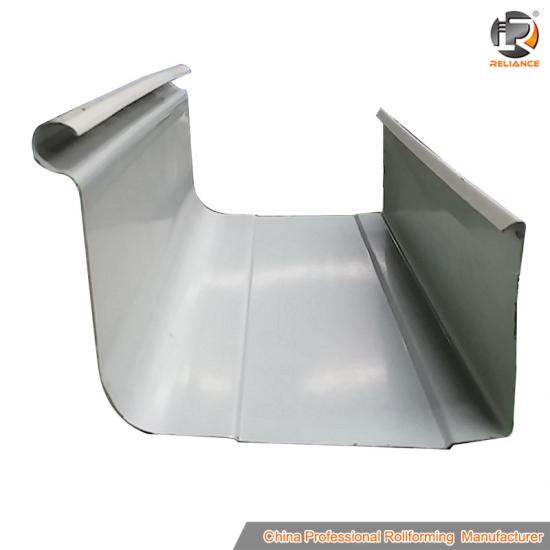

  • 6(9).jpg

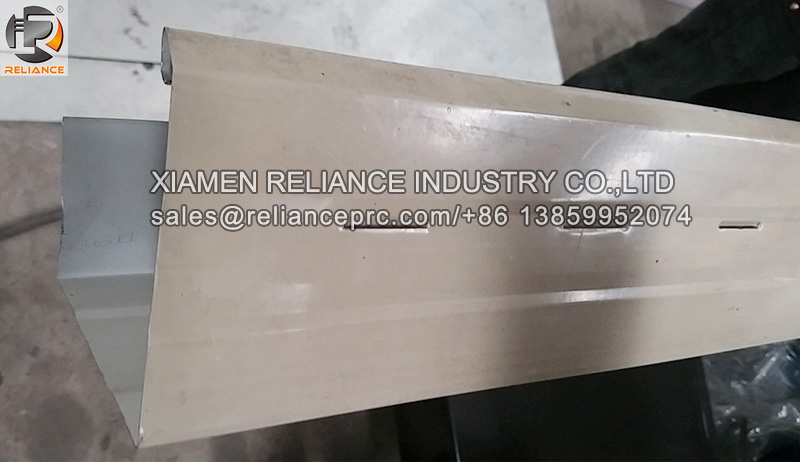

Rain Gutter Making Machine is use to product various types of steel water gutters that typically used as a water collection component in the water discharge system of a building. The gutters can be made from galvanized steel, pre-painted steel and stainless steel. It widely used in PEB construction system or home edge to preventing leaks.

PAYMENT: T/T,L/C,CASH

LEAD TIME: 2~3Months

WAY OF PACKAGING: Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:


Water Gutter Forming Machine/Rain Gutter Making Machine/Gutter Roll Forming Machine /Arc Gutter Roll Forming/Australia Gutter Machine:

Reliance gutter machine can be made into different patterns as per requirements such as K style gutters making machine, fascia gutters machines, half round gutters making machine, European gutter forming machine and square rain gutter making line.

Working Procedure:





Uncoiling– Pre-shearing (Optional)- Roll Forming Machine– Cutting– Collecting



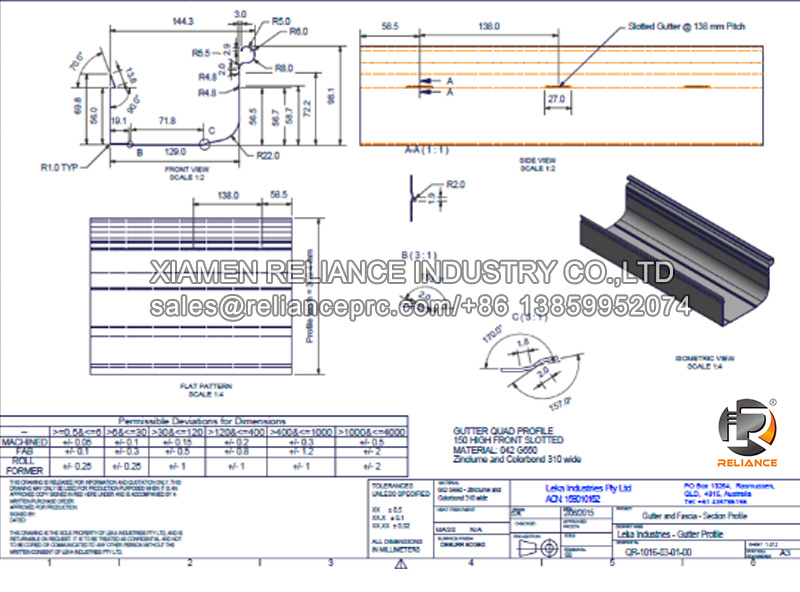

Profile drawing:


Material Thickness: 0.42mm



Applicable material: PPGI, GI, CR Steel;

With yield strength 3550Mpa


Machine Components

3TonX600mm Hydraulic Un-Coiler (with dance arm)

Hydraulic system for expansion coil-inner-hole with 4 palms

Link-connect expanding system

Pump power=1.5KW

Load capacity=3 Ton;Coil Inner – diameter =451-530 mm

Coil outer-diameter=Max. 1500 mm

Coiler Width=Max. 600 mm

Driving motor to turn the coil, frequency speed control

Entry roller & Manual Pre-shearing device Un-powered

Smart cut control, to cut off the end of the final piece of sheet only

Working thickness up to 0.6mm



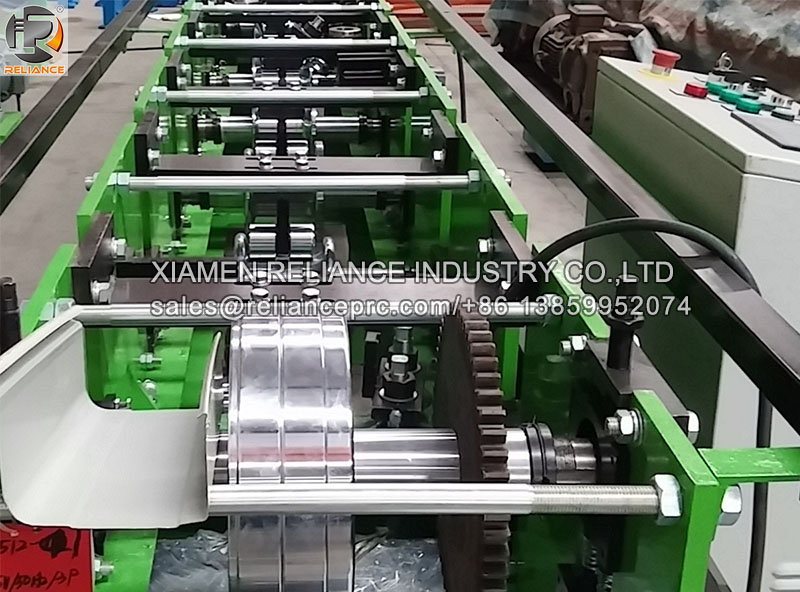

Cold Rolling Mills

             Feeding section with guide

Gear/Sprocket driving; 12-step to form,new stand frame design

Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated.

Option design of the splitting device for overflow crack, manual turning and fix

Shaft Diameter: Φ75mm, Precision Machined

Main Motor: 7.5KW, Frequency speed control

Max line speed of roller former 18m/min

Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands go Inside, slip type

Safety switches with interlock control <1x3>

One roll former equipped with three mesh cover.

Each cover equipped one safety switches, which works together with one safety module

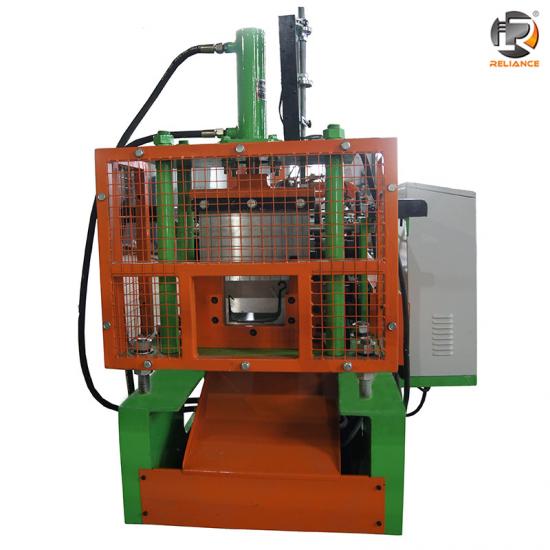

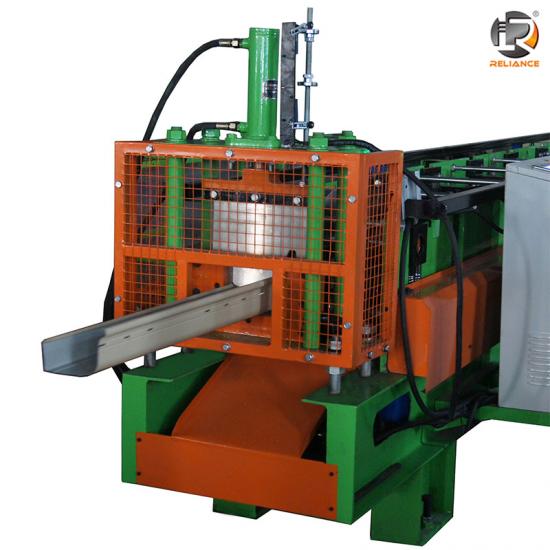

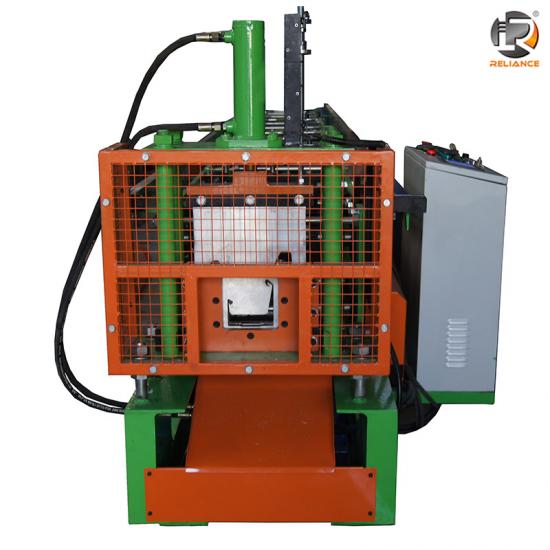

Hydraulic Cutting Device

Stop to cut, Post cut, slug breaker

Pump motor =4KW

Cutting tool material: Cr12, Heat treatment

One extra cutting blade as spare, totally two units of cutting blades

Full safety mesh cover around cutting device

PLC Control System

Control the quantity & cutting length automatically.

Combined with: PLC(Delta), Touch Screen (WEINVIEW), Inverter (Delta), Encoder (Omron), etc

Cut-to-length tolerance≤±2 mm

Control Voltage: 24V



Product Runt out Table   un-power, 1 unit, 3 meters long
