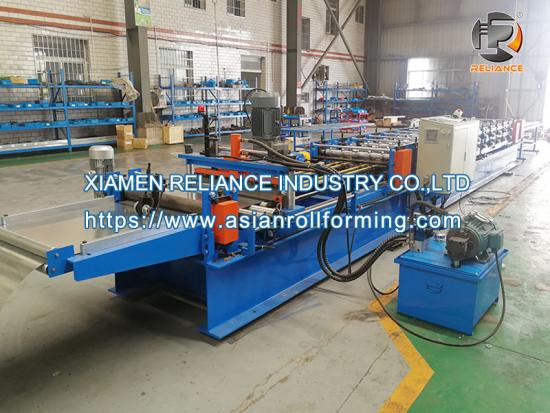

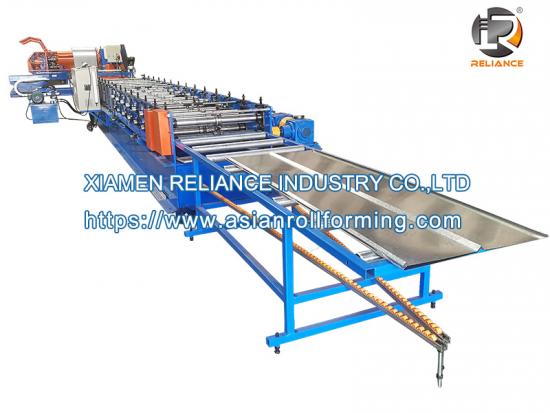

W Valley Gutter Roll Forming Machine

  • 1(22).jpg
  • 2(21).jpg
  • 3(18).jpg
  • 4(18).jpg
  • 5(16).jpg
  • 6(14).jpg
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
W Valley Gutter Roll Forming Machine/W Valley Machine/Valley Flashing Roll Forming Machine/Fly Shearing Roof Valley Machine/Ridge Valley Roll Forming Machine/W Valley Trim Roll Former

is developed by Xiamen Reliance Industry co.ltd

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:

W Valley Gutter Roll Forming Machine/W Valley Machine/Valley Flashing Roll Forming Machine/Fly Shearing Roof Valley Machine/Ridge Valley Roll Forming Machine/W Valley Trim Roll Former


The valley machine is to manufacturing various trims profiles. Steel roof valley flashings are produced on press brakes, folders or other hand operation brakes typically. The length of the produced valley is fixed and limited, Reliance w valley roll forming machine is capably to produce finished part from pre-cutting blanks in several seconds. That much improves the efficiency and save time. It can set various length order batches via program and control system, meanwhile are able to produce valley sheet automatically.


Reliance offer on-site installation, training and maintenance if have demand.

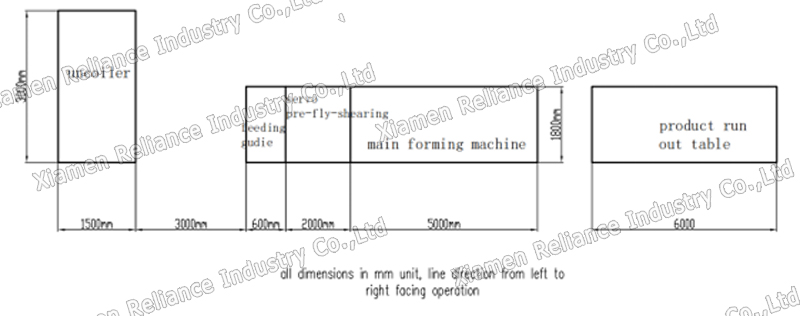

Draft Layout:

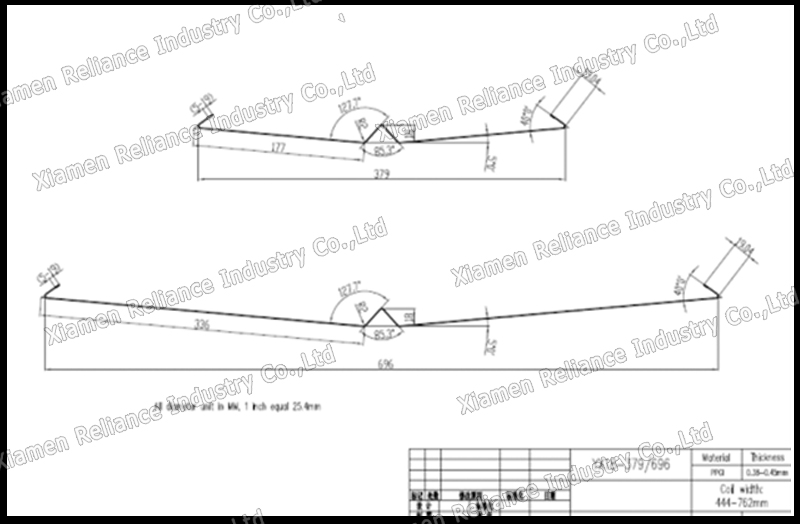

Profile:




The production line system includes:


5Ton*1000mm Hydraulic De-coiler with coil car

Power Feeding Section with Guide

Pre-fly shearing Section

No stop main roll forming machine

Electrical control system

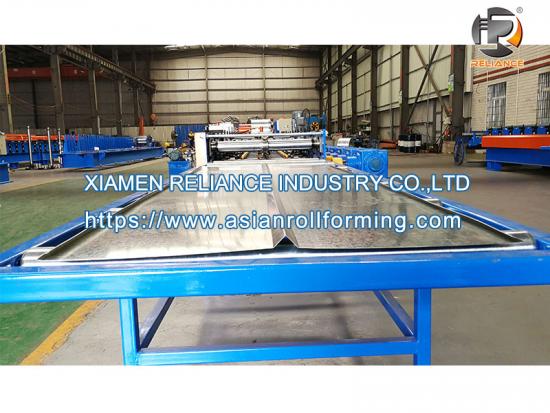

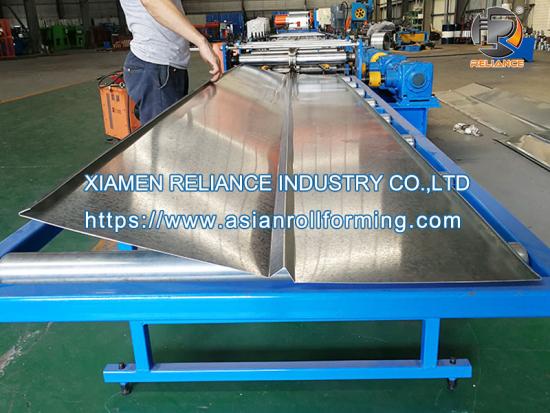

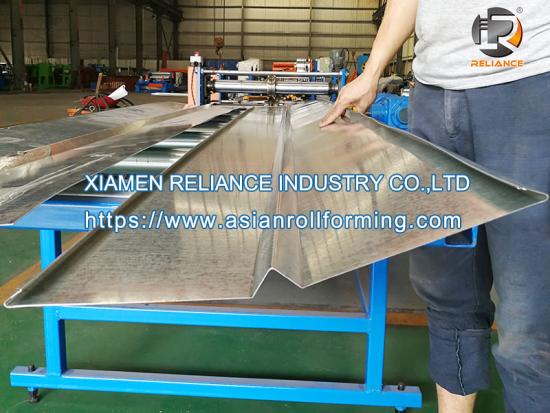

Product run out table

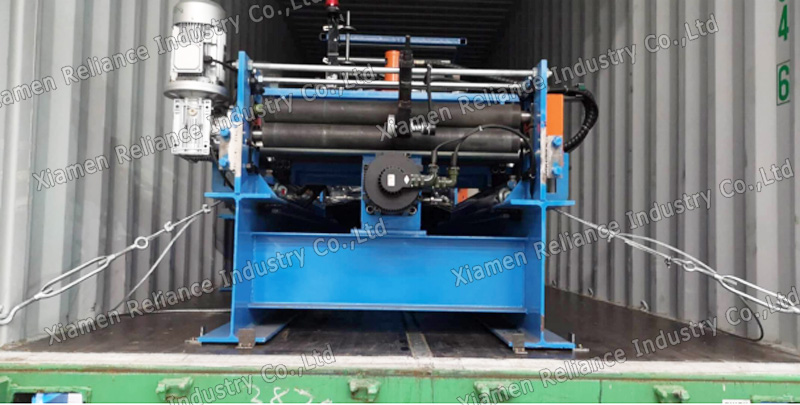

Loading Photos:
