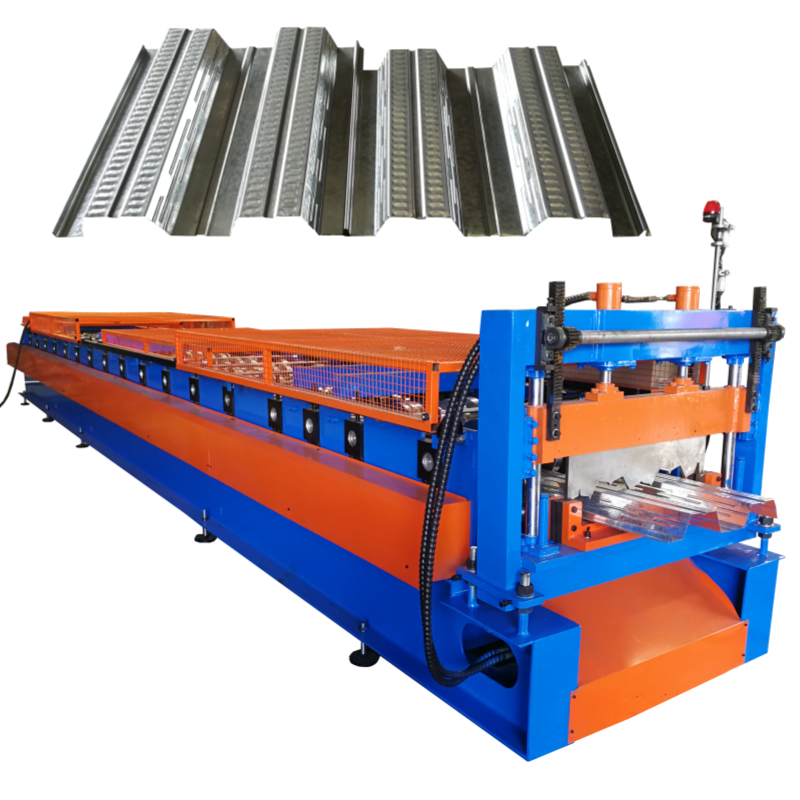

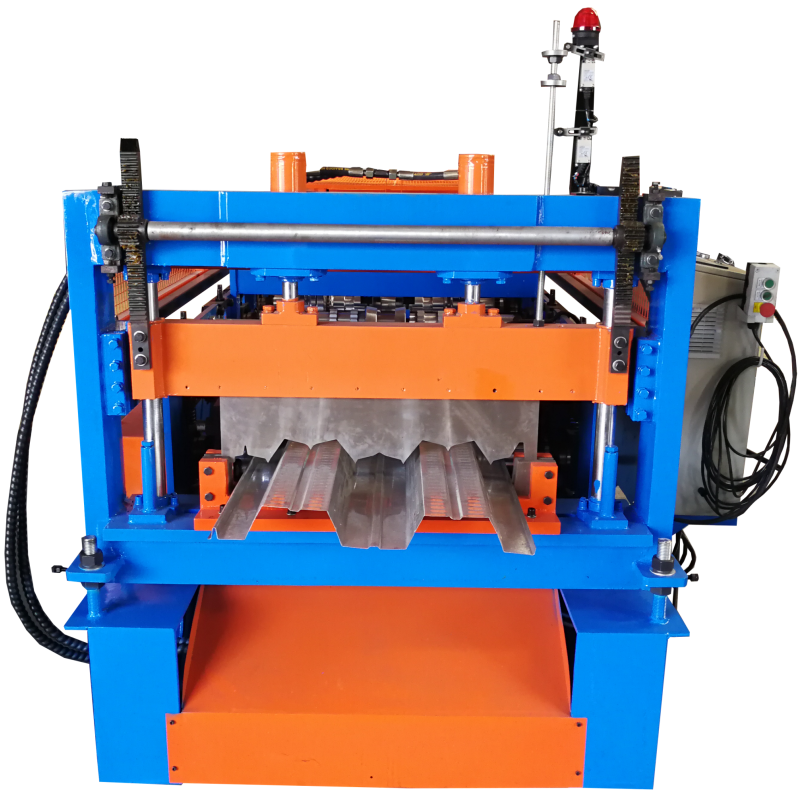

Two Wave Steel Deck Metal Forming Machine

2 (8).png
2 (8).png
2 (7).png
1 (7).png
1 (8).png
  • 2 (8).png
  • 2 (7).png
  • 1 (7).png
  • 1.png
  • 1 (8).png
    • 1
    • 2
    • 3
    • 4
    • 5
0.8-1.2mm material thickness
Feeding width: 865mm
Galvanized steel; Cold roll steel;
Yield strength: 350Mpa
Size: 15000x1000x1500mm
Weight: 14500KGS

PAYMENT:T/T,L/C,CASH

LEAD TIME:3~4Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.



Functions

  • This machine uses a highly - accurate roll - forming process. It starts with flat steel coils, which are gradually and precisely shaped as they pass through a series of specifically - contoured rollers. Each roller in the sequence plays a crucial role in bending and shaping the steel strip into the characteristic two - wave profile of the steel deck. This process ensures that the final product has a consistent and accurate shape, meeting the strictest construction standards

  • It is designed to handle a wide range of steel materials. Whether it's galvanized steel coils, which are highly resistant to corrosion and thus ideal for long - lasting construction projects, or other types of steel sheets, our machine can accommodate them. The machine can process materials with different thicknesses

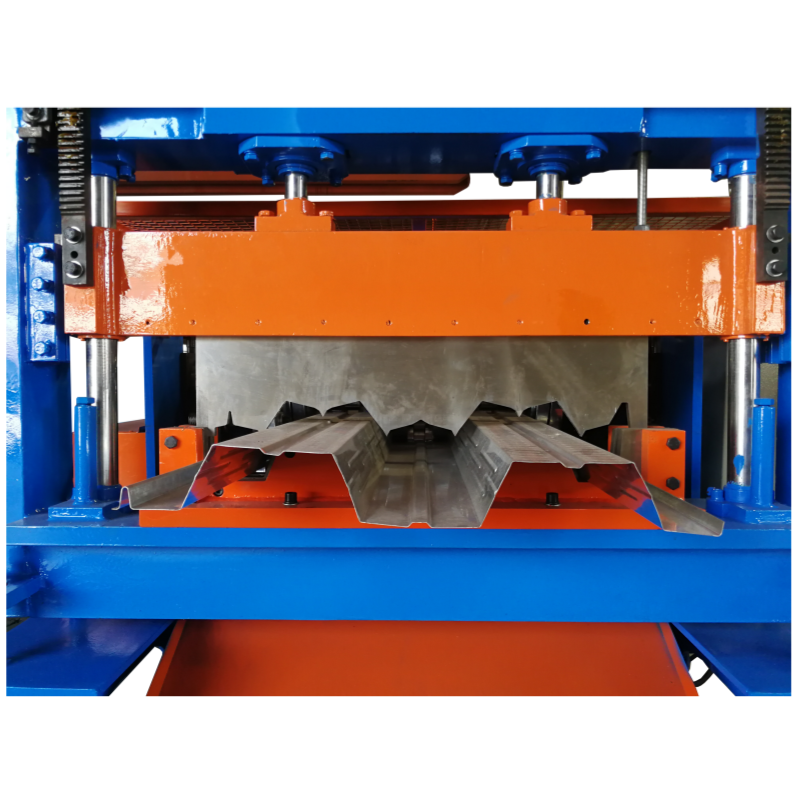

  • Equipped with an advanced cutting mechanism, the machine can precisely cut the formed two - wave steel deck panels to the required lengths. This cutting operation is integrated seamlessly with the roll - forming process, allowing for continuous production. The cutting mechanism can be adjusted to produce panels of different lengths, meeting the specific needs of each construction project.
II. Advantage
  • With a large number of forming stations , our two - wave steel deck metal forming machine ensures that each panel produced has a uniform and accurate shape. The high precision not only contributes to the structural integrity of the steel deck but also makes installation in construction projects much easier. The consistent shape of the panels means that they can be easily joined together, reducing installation time and labor costs.

  • Built with heavy - duty and high - quality components, our forming machine is designed to withstand the rigors of continuous operation. The mainframe structure is robust, ensuring stability during the roll - forming process. The use of high - grade materials for the rollers and other key parts not only extends the lifespan of the machine but also reduces the need for frequent maintenance, resulting in lower overall operating costs.

  • We understand that different construction projects may have unique requirements. Therefore, our two - wave steel deck metal forming machine can be customized. Whether it's adjusting the width, depth, or other dimensions of the two - wave profile, or modifying the machine to handle specific types of materials more effectively, we can tailor the machine to meet your exact needs.

  • The machine is equipped with an intuitive and user - friendly control system. Operators can easily set and adjust parameters such as roll spacing, production speed, and cutting lengths through a simple interface. The control system also provides real - time monitoring of the machine's operation, allowing for quick identification and resolution of any potential issues, further enhancing the efficiency of the production process.
