PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

▶Description:

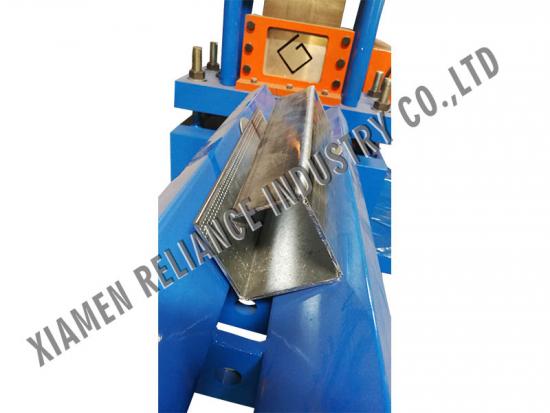

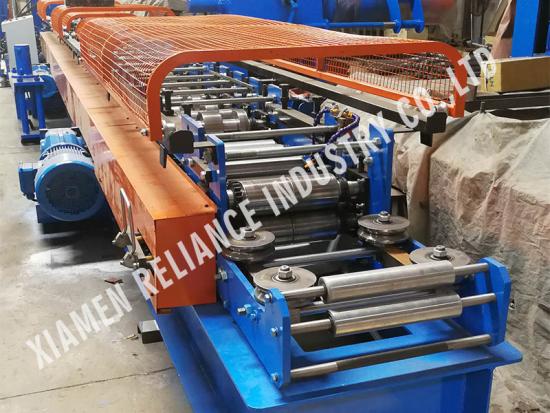

Shutter door track roll forming machine/garage door track forming machine/rolling shutter door track forming machine :

can be fabricated from various material thicknesses and in almost any length. With highly precision dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.

The production line system includes:

Decoiler/Uncoiler

Material feed

Pre-levelling device

Forming machine with water cooling system

Automatic cutting section

Electrical control system

Product run out table

▶Sliding door track roll forming machine  and garage door track:
