PAYMENT: T/T,L/C,CASH

PRICE: $9999/39999

SHIPPING PORT: Xiamen Port,China

LEAD TIME: 45~60Days

WAY OF PACKAGING: Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES: China Professioanl Metal Sheet Embossing Machine Manufacturer

Description:

RIB Decking Rollforming Machine/lgs decking machine/floor decking machine/interlock decking/interlock roofing machine:

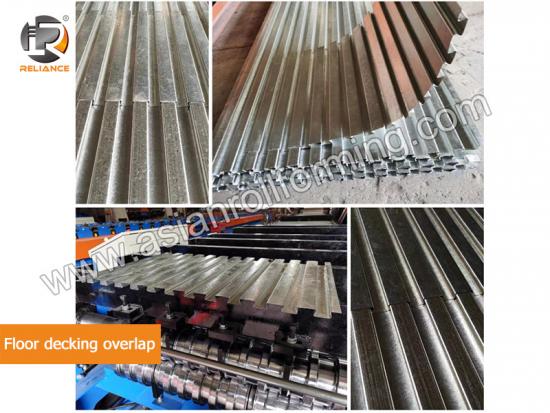

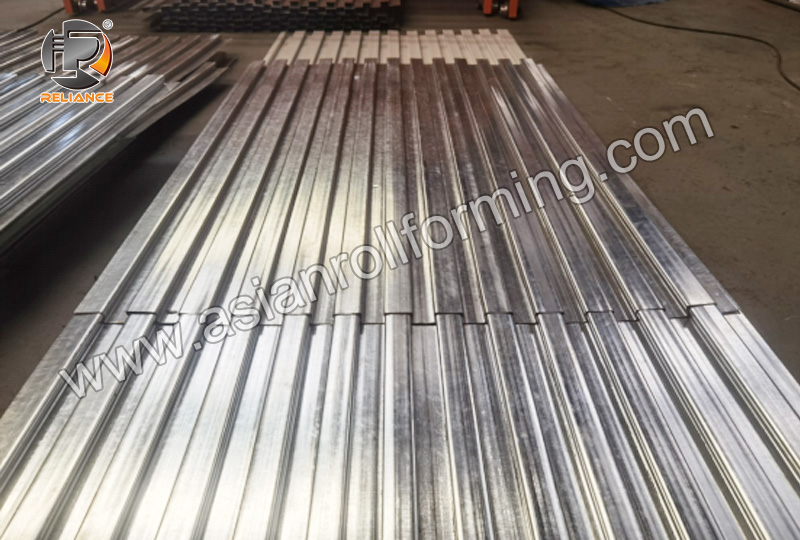

The RIB decking rollforming machine is new solution of decking that used for producing interlock type decking panels, meanwhile for thinner gauge material also can be use as roofing. This gives a new concept for decking and more flexible connection way of overlapping. The steel slide can be fabricated from various material thicknesses and in almost any length. With online running and control automatically, the forming line capable well improved customer production capacity.

Reliance offer on-site installation, training and maintenance if have demand.

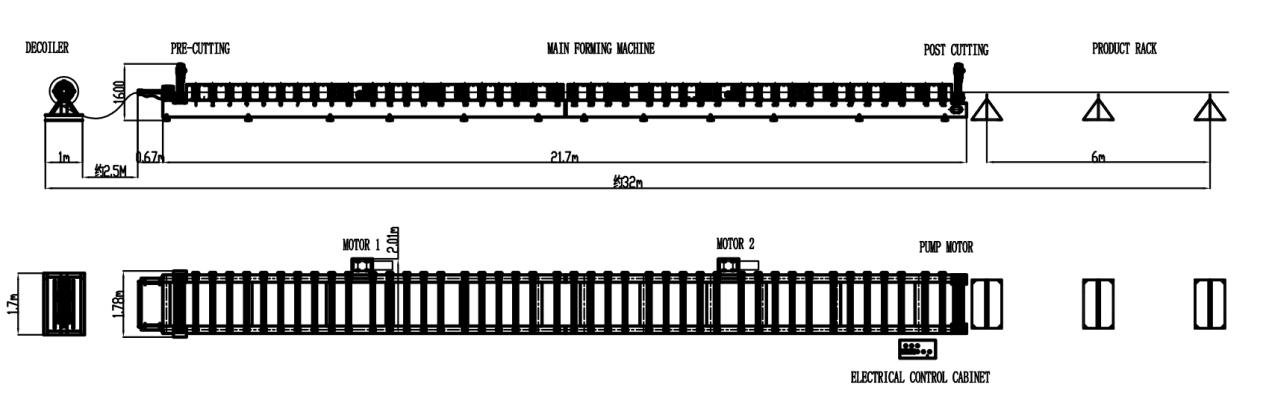

Working Procedure Layout:

Uncoilering- Hydraulic Pre-cutting (option)- Rollforming- Cutting- Collecting

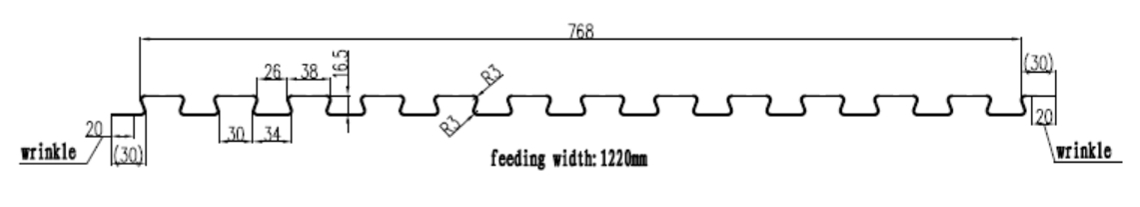

Profile drawing:

0.5-0.9m material thickness

Effective width: 768mm, Coil feeding width: 1220mm

PPGI, Galvanized steel; Yield strength: 250~350Mpa

The production line system includes:

Decoiler/Uncoiler

Material feeding

Hydraulic Pre-cutting for cut to length and forming usage

Main smooth forming machine

Automatic cutting section

Electrical control system

Product run out table

●Floor decking machine:

●Lgs interlock decking machine:

●Pre-cut forming machine:

●Rollforming hose:

Why Choose Us:

•Original manufacturer with prompt directly service support.

•Professional and deep experienced in customized roll forming field.

•Reasonable price with qualified, reliable, humanization design and solutions.

•We sincerely treat customer as friend and build lasting relationship.

Advantage Features：

•Forming and cutting at any required length with pre-set quantity automatically.

•The encoder will record signal feedback and showing exact length of product.

•The total length of finished coil is able to calculate via control panel.

•Steel rollers are fabricated by CNC precision machine and hard chrome coated.

•Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

•Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

Packing and Delivery：

Packaging Details:

Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

Loading Port: Xiamen Port, China

Machine Leading Time: 70~90 Days

Loading Photos:
