RELIANCE Customized Ceiling Hollow Making Machine

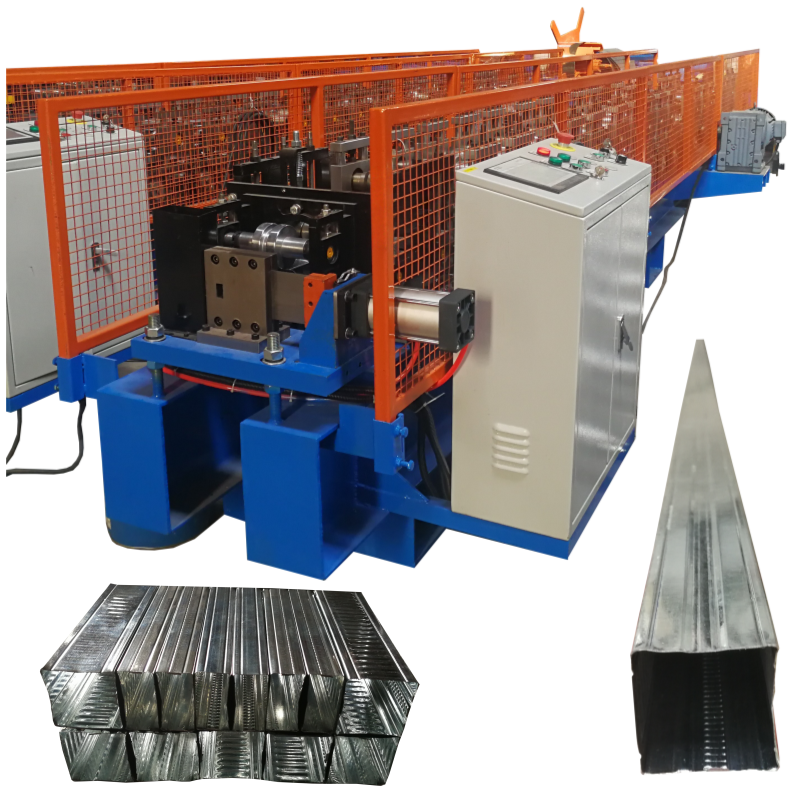

0.18mm Ceiling Hollow Making Machine 1.png

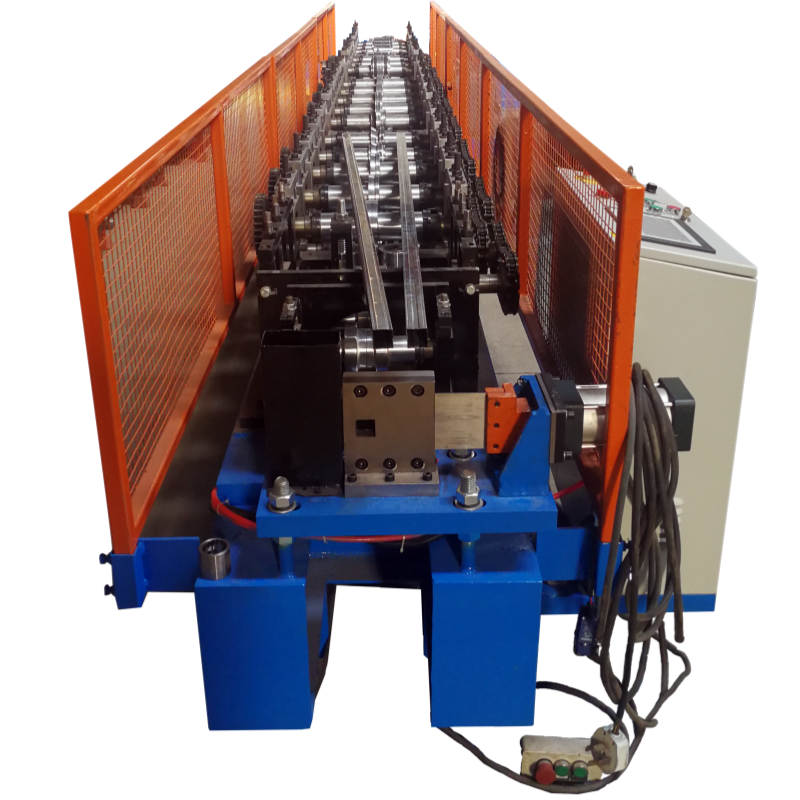

0.18mm Ceiling Hollow Making Machine 2.png

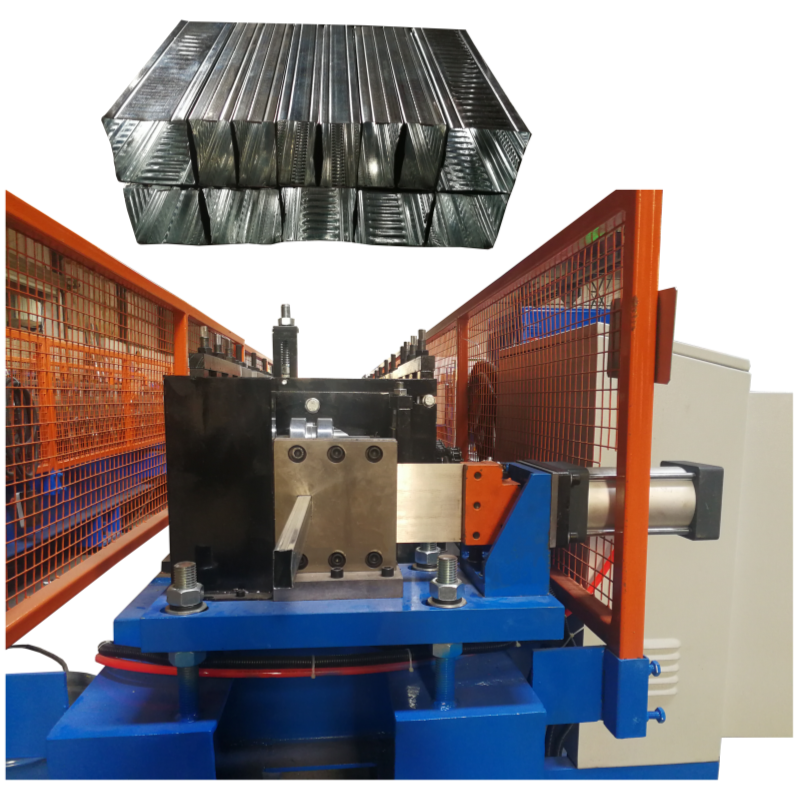

0.18mm Ceiling Hollow Making Machine 6.png

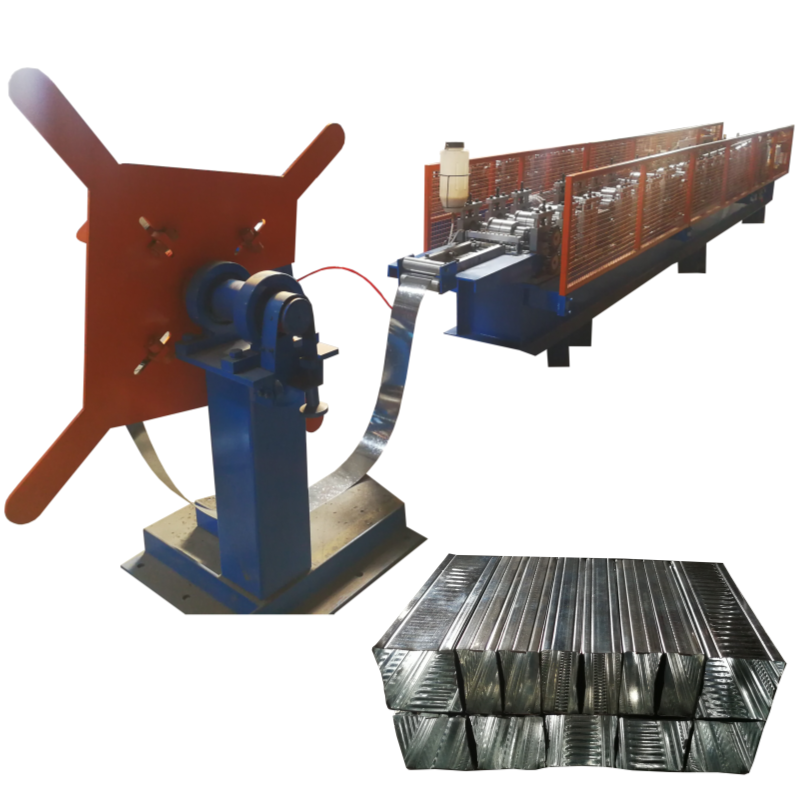

0.18mm Ceiling Hollow Making Machine 5.png

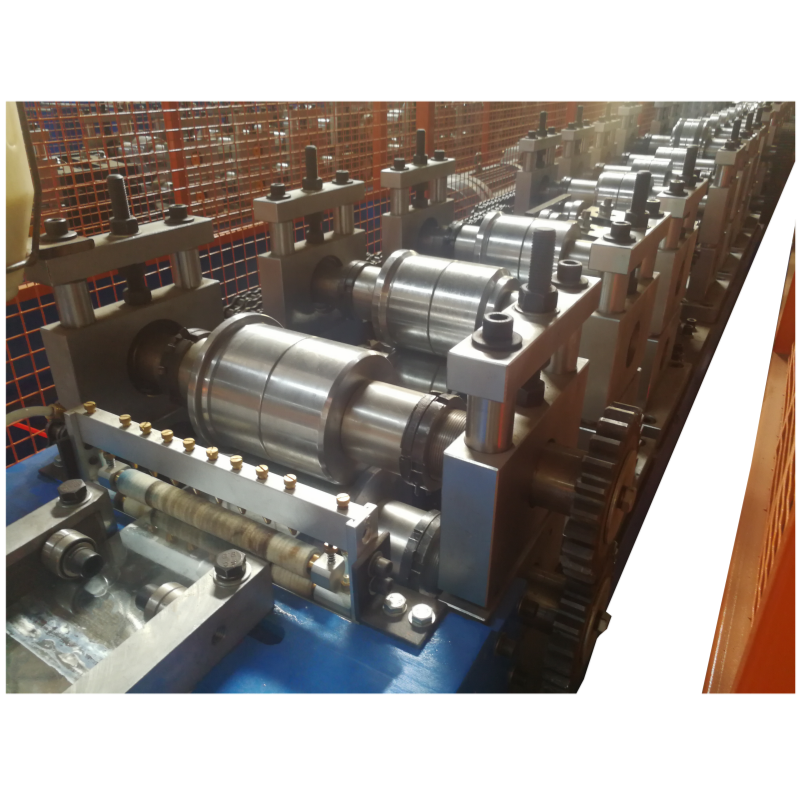

0.18mm Ceiling Hollow Making Machine 3.png

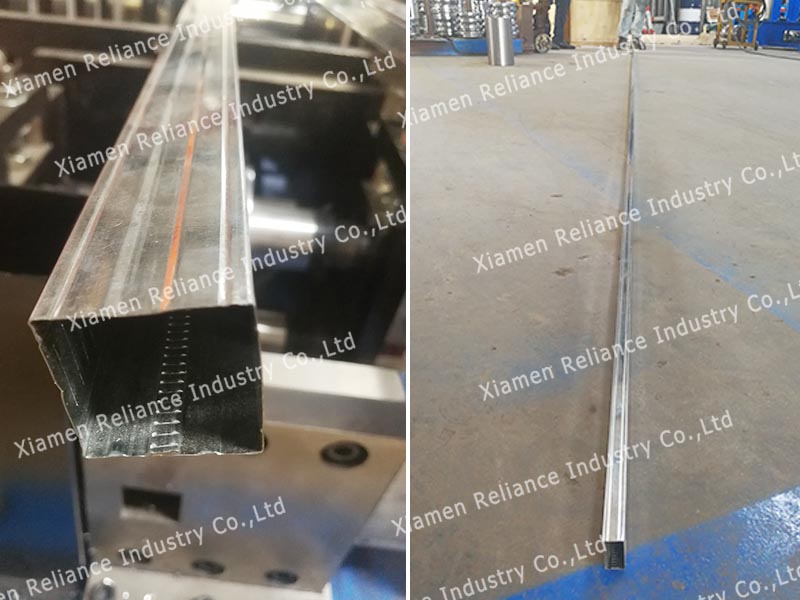

Steel Hollow Roll Forming Machine/square hollow steel section forming machine/hollow ceiling roll forming is used for producing steel hollow ceilings that use in inner house suspended ceiling usage. The steel hollow can be fabricated from various material thicknesses and in almost any length. With highly dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.

Reliance offer on-site installation, training and maintenance if have demand.

产品详情

Technical Details

The Line’s Specifications
Weight	About 2800kgs
Whole line’s dimension	About 10m x 1.2m x 1.2m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized or Galvalume Coils
Thickness	0.18-0.35mm
Coil width	According to products size
Yield Strength	550Mpa
Main Technical Parameters
Quantity of forming rollers stations	About 16
Diameter of forming rollers shafts	60mm
Roll Forming Speed	25m/min
Production Speed	As per order length
Forming rollers material	40Cr steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc
Electric Power requirement	Main motor power: 7.5kw
Electric Power requirement	Pneumatic cutting device
Electric voltage	According to customer’s requirement
