PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

Description:

Portable Standing Seam Roofing Machine/Standing Seam Metal Roofing Machine:

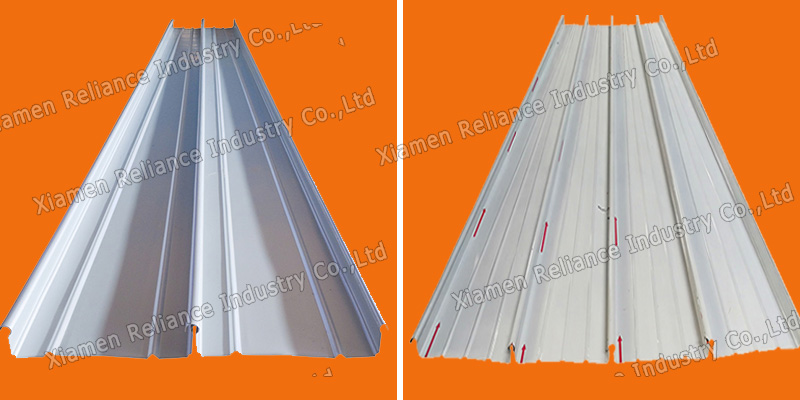

Firstly, the standing seam roof panels have a concealed fixing or seaming method by turning up the edges of two adjacent panels, and then interlocking them via electric seaming machine. By this way, the seaming or fixing parts have better and nice appearance because of invisible locking part. We also called the panels concealed fixing panels sometimes!

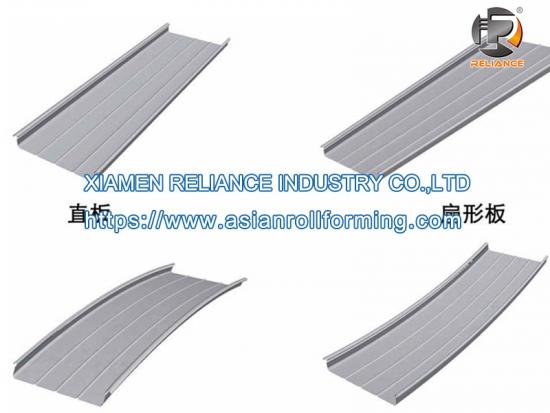

The standing seam roof sheet width are variable, even taper shape are available. Its material thickness varies from 0.4-0.8mm,in some places such as USA, they use copper as raw material. But some other concealed fix standing seam roofing, likebemo roof sheet are thicker from 0.8-1.2mm.

The production line system includes:

Hydraulic Decoiler/Uncoiler

Flat sheet pre-shearing device

Material feeding & slitting section

Duplex type main forming machine

PLC automatically control cabinet

Product Rack

40 Feet container

Electric Seaming Machine

Manual Edge-locking Pincers

Auto standing seam curving machine

Advantage Features:

Forming and cutting at any required length with pre-set quantity automatically.

The encoder will record signal feedback and showing exact length of product.

The total length of finished coil is able to calculate via control panel.

Steel rollers are fabricated by CNC precision machine and hard chrome coated.

Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

Why Choose Us?

Original manufacturer with prompt directly service support.

Professional and deep experienced in customized roll forming field.

Reasonable price with qualified, reliable, humanization design and solutions.

We sincerely treat customer as friend and build lasting relationship.

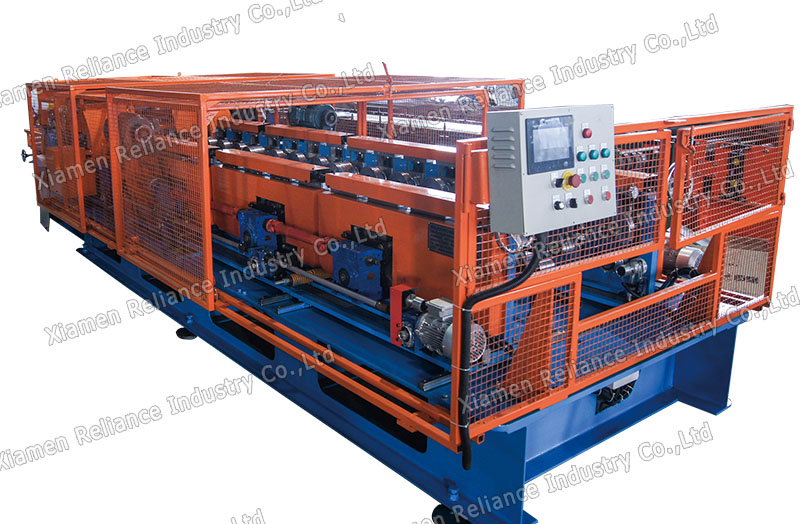

Portable Standing Seam Roof Machine:

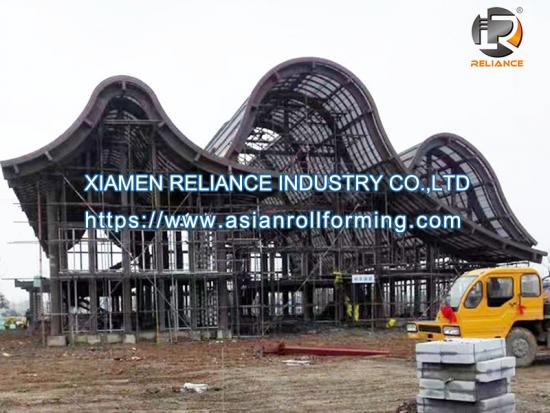

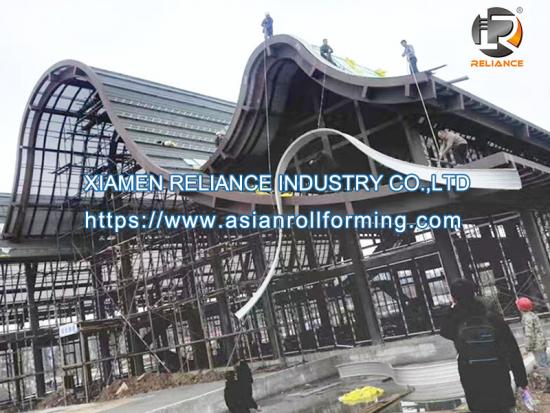

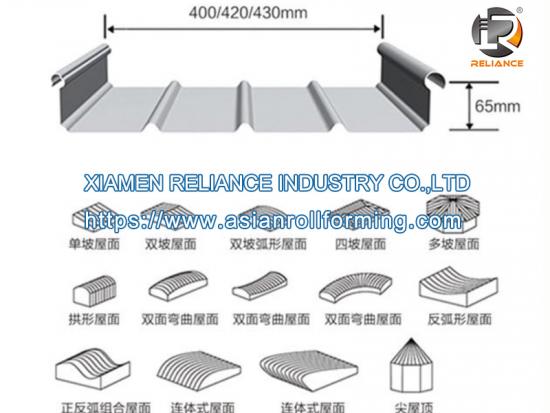

Standing seam roofing And Taper standing seam roof:
