Highway Guardrail Roll Forming Machine

  • 1(6).jpg
  • 2(6).jpg
  • 3(6).jpg
  • 4(4).jpg
  • 5(3).jpg
  • 6.jpg
  • 7.jpg
  • 8.jpg
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
Highway Guardrail Roll Forming Machine/W Beam Crash Barrier Machine/guardraill rollforming machines/w beam guardrail machine is used for producing steel highway guardrail.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Highway Guardrail Roll Forming Machine/W Beam Crash Barrier Machine/guardraill rollforming machines/w beam guardrail machine

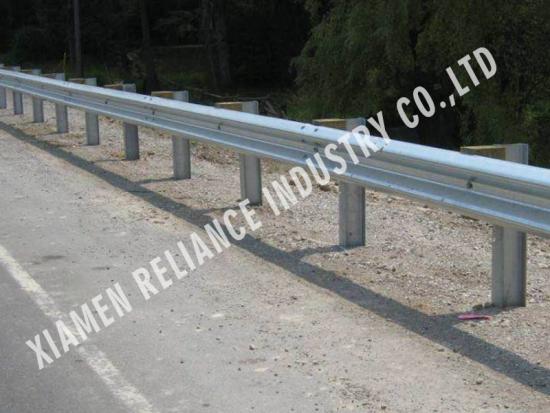

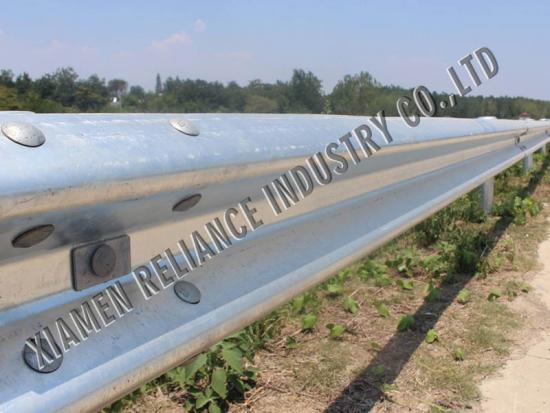

The passive barrier are widely installed in the highway road or city road system that to keep vehicles running outside of road. Once inevitable collision happened, the highway guardrails can decelerate the speed of errant vehicles effectively and ensure them back to the road. Besides, it also makes the guardrail to avoid running animals stray into the road.

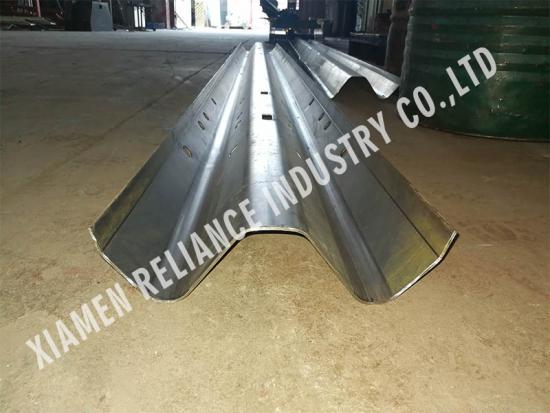

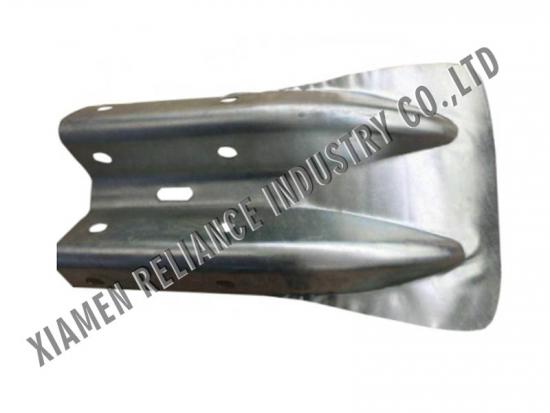

The steel guardrail can be fabricated from various material thicknesses and in almost any length. It has several patterns and composition. Such as W beam guardrail, Thrim beam guardrail, Sigma Beam guardrail, stand post and head, tail bending stopper. With highly inline precision punching automatically and cut to length, the forming line capable well improved customer production capacity.

Production line system includes:


Decoiler/Uncoiler

Pneumatic feeding guide

Pre-level Device

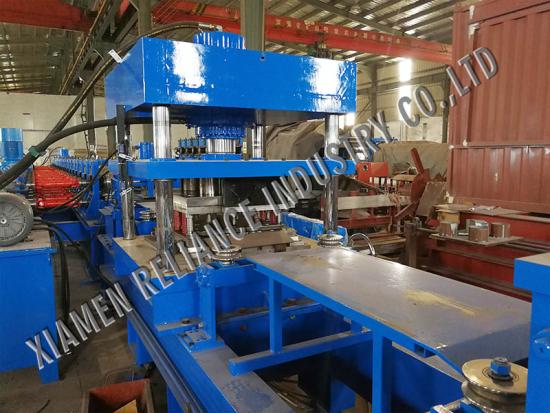

Pr-punching & Pre-shearing device

Transit Table

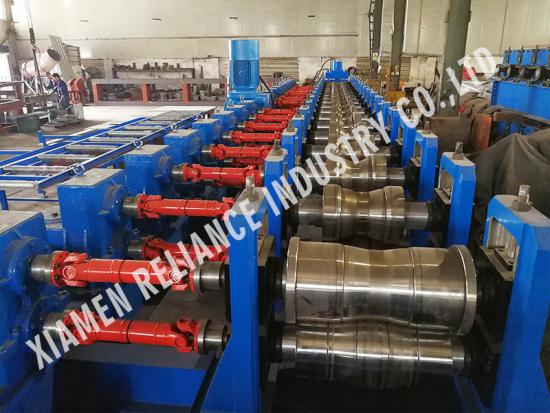

Main Forming machine

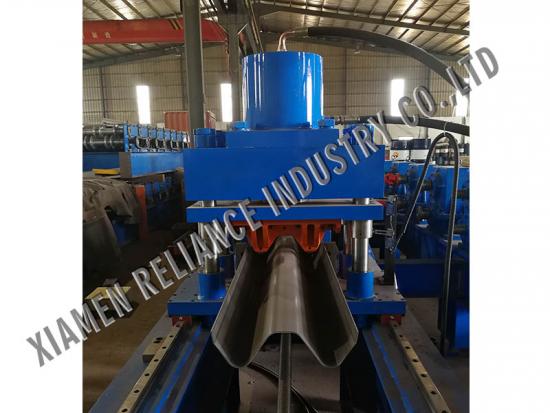

Automatic cutting section

Electrical control system

Product run out table
