PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

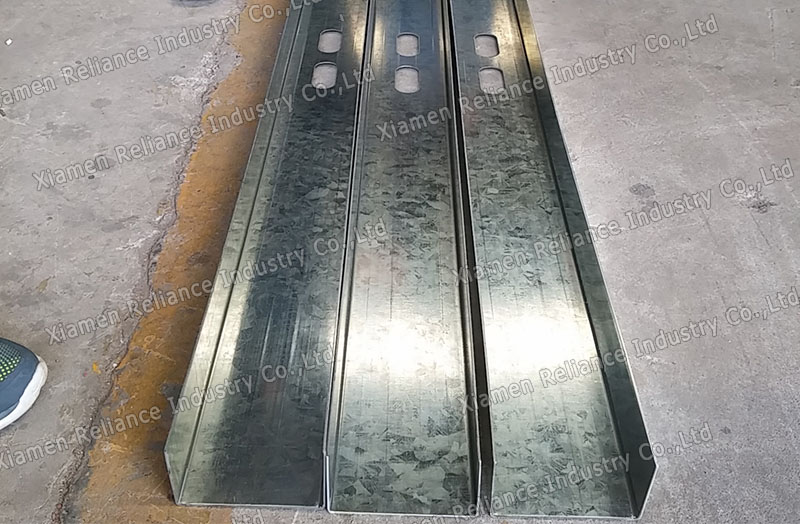

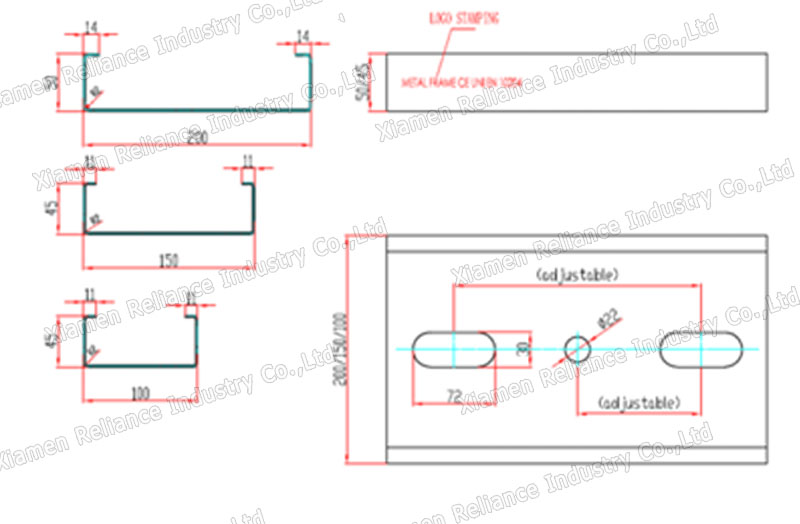

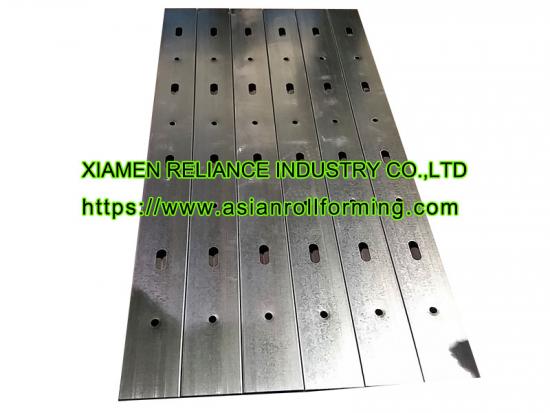

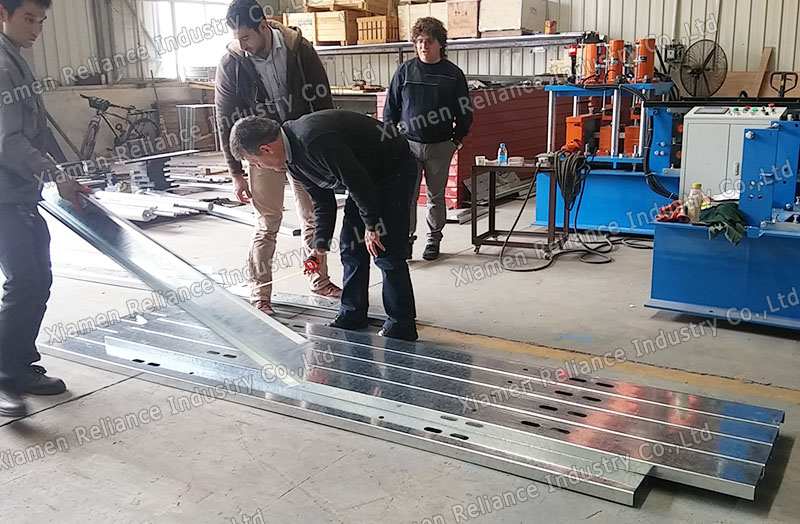

CU Purlin Forming Machine/Metal Stud Roll Forming Machine/U Channel Machine Profile drawing:

Workable material: 1.5~2.0mm;

Galvanized steel, Cold roll steel;

Yield strength: 350-550Mpa.

The production line system includes:

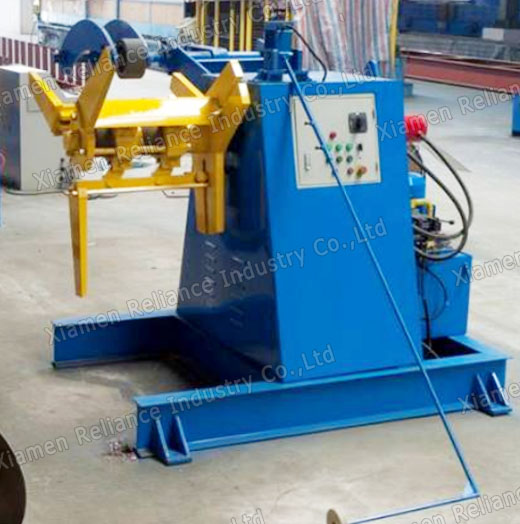

5Ton*600mm Hydraulic Decoiler/Uncoiler

Coil inner bore shrinkage and expand via hydraulic control system

Motor rotation power 3KW; Pump motor 3KW

Coil Inner-diameter= 451-530mm. Coil Outer-diameter Max. 1500mm；

Feeding guide&Pre-levelling Device

Adjustable of guiding position to suit for material feeding

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

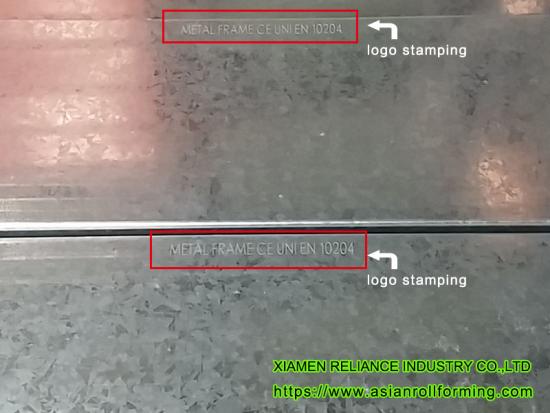

Hydraulic letter stamping device

Stop to stamping, Pre-stamping

One set of letter punching tool, adjustable horizontal direction

Stamping letters customized

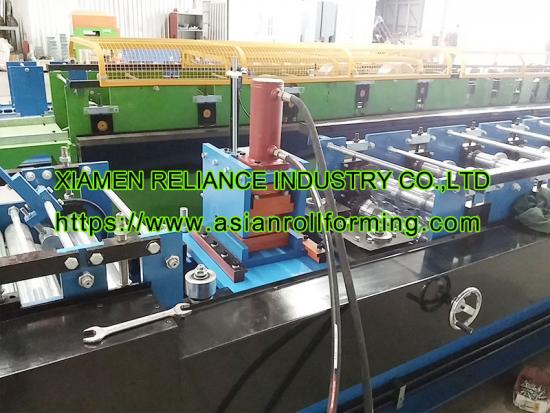

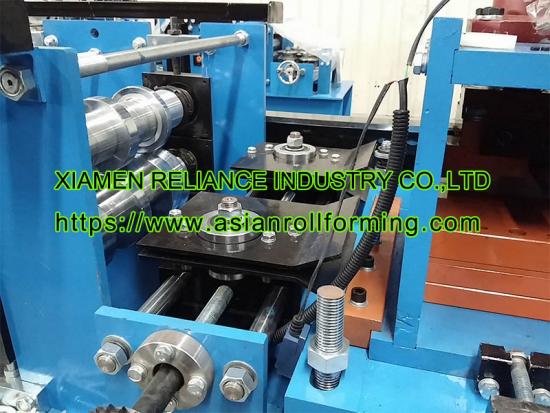

Main roll forming machine system

450H steel base frame; 18mm wall plate welding at side

Roller material GCr15 steel (HRC58-60), heat treatment, CNC lathe, hard chrome coated

Shaft Diameter=φ75mm, precision machined

The machine profile size changing via pre-machine spaces, spacers are disassemble

Gear/sprocket driving system, 14-steps to form

Main driven motor 15KW, frequency speed control

Line speed of rollformer 18m/min

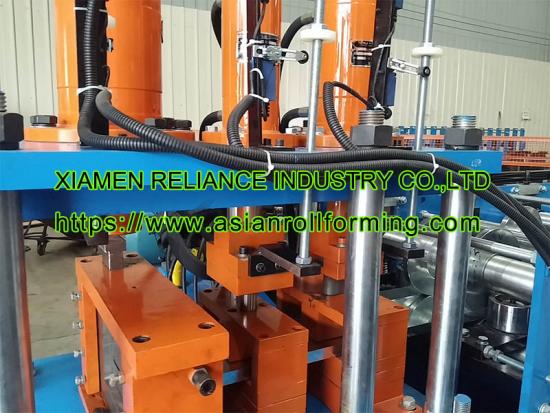

Hydraulic punching & Cutting device

Stop to punching, Stop to Cutting, Post punching, Post Cutting

No blanking cut

Three units of hydraulic cylinder, one for punching one slot 30*72 on the center of web; One for punching round hole Φ22mm;The other for cutting function

Six sets of cutting blades, one set of punching die; Pump motor: 11KW

Cutting tool material: Cr12 (D3), Heat treatment

PLC Control Cabinet

Control the stamping, punching length, quantity & cutting length automatically

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Cut-to-length tolerance≤±1

Product Run out table

One unit, 6 meters long
