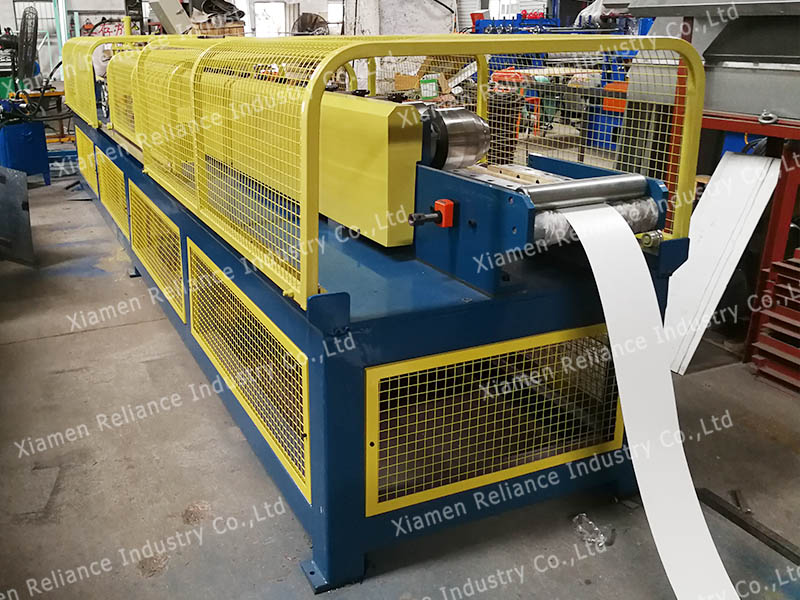

Aluminum Sliding Window Roll Forming Machine

Aluminum window slide rollforming machine/window slide roll forming machinery/window roll former is used for producing window slide that cable for movable window system.

Product details

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

▶Description:

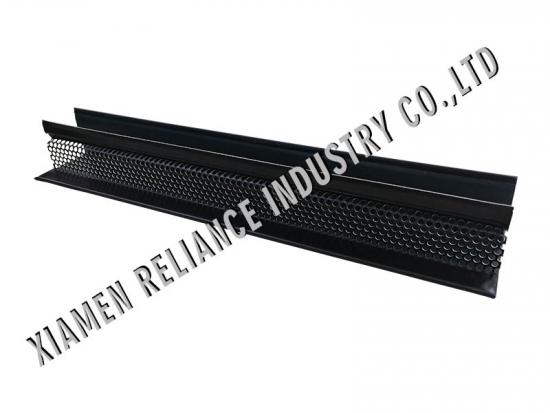

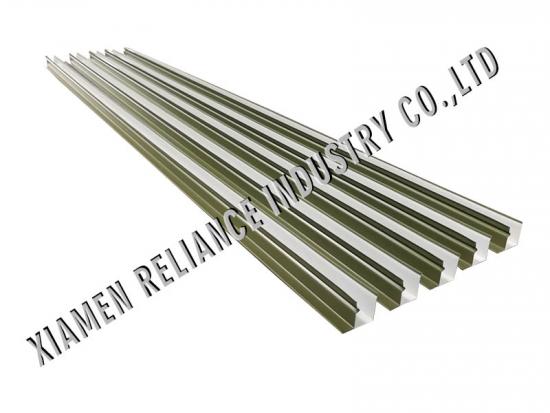

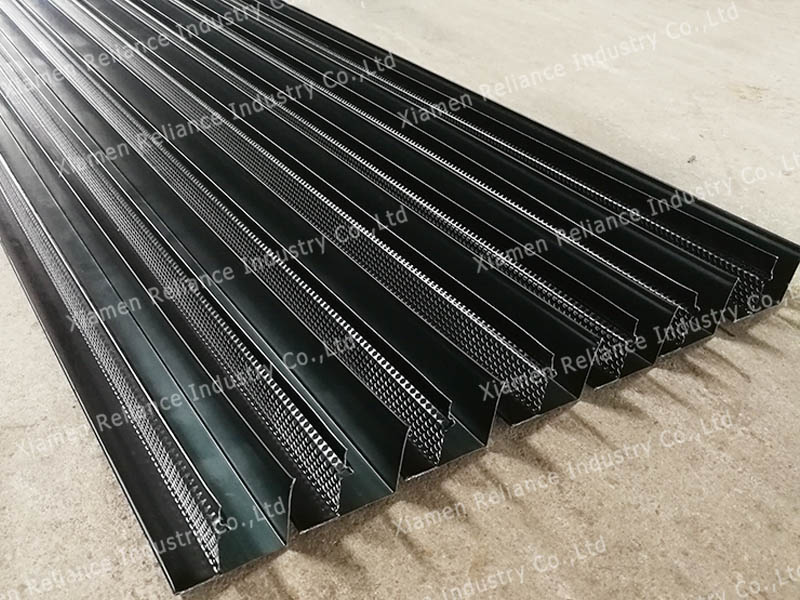

The aluminum slide can be fabricated from various material thicknesses and in almost any length. With highly dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.

▶Technical Details:

The Line’s Specifications:
Weight	About 3655kgs
Whole line’s dimension	About 12.5m x 1.4m x 1.64m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material:
Material	Aluminum Coils, ppgi
Thickness	0.43-0.55mm
Coil width	According to products size
Yield Strength	350Mpa
Main Technical Parameters:

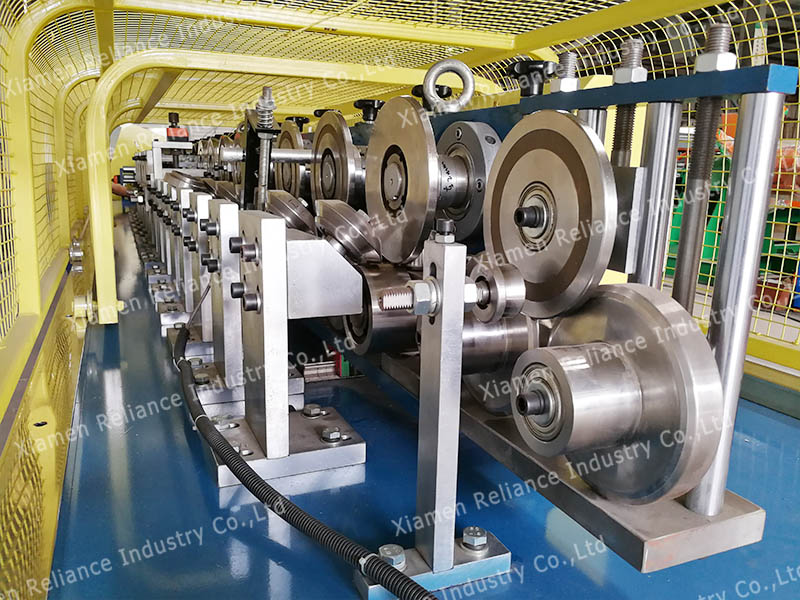

Quantity of forming rollers stations	About 18
Diameter of forming rollers shafts	60mm
Roll Forming Speed	35m/min
Production Speed	35m/min
Forming rollers material	Cr12Mov with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc
Electric Power requirement	Main motor power: 18kw
Electric Power requirement	Hydraulic unit motor power: 4kw
Electric voltage	According to customer’s requirement
Main Components:
Decoiler (manual and automatic for options)	1 set
Guiding device	1 set
Roll Forming system	1 set
No-Stop Cutting system	1 set
PLC control box	1 set
Hydraulic unit	1 set
Run outs tables	1 set
