C50-200 Channel Machine

  • 1(45).jpg
  • 2(44).jpg
  • 3(41).jpg
  • 4(41).jpg
  • 5(39).jpg
  • 6(33).jpg

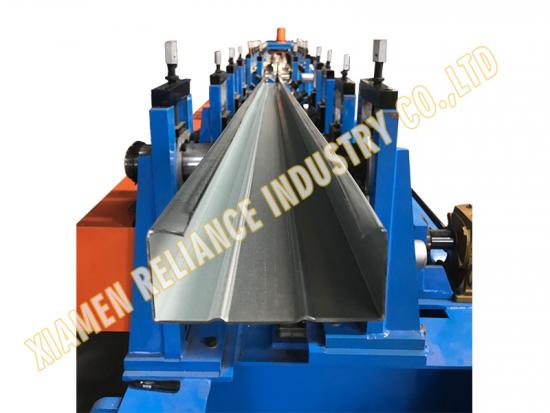

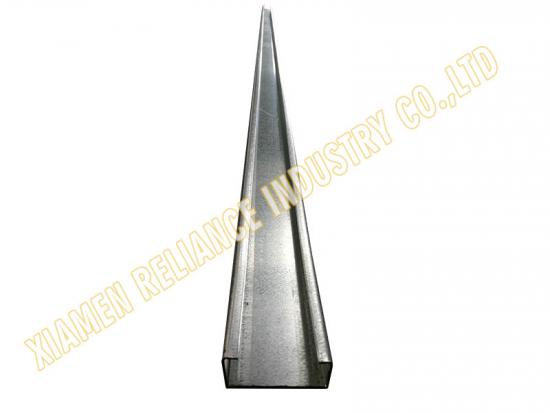

Adaptable C50-200 C Purlin Machine/ C Channel Machine/Quick Change C50-200 Purlin Roll Forming Machine/Small Size C Purlin Machine/C Purlin Roll Forming Machine is use to produce small size range C purlins. Size range variable from 50-200mm. Thickness range from 0.8~2.0mm.


LEAD TIME:2~3Months

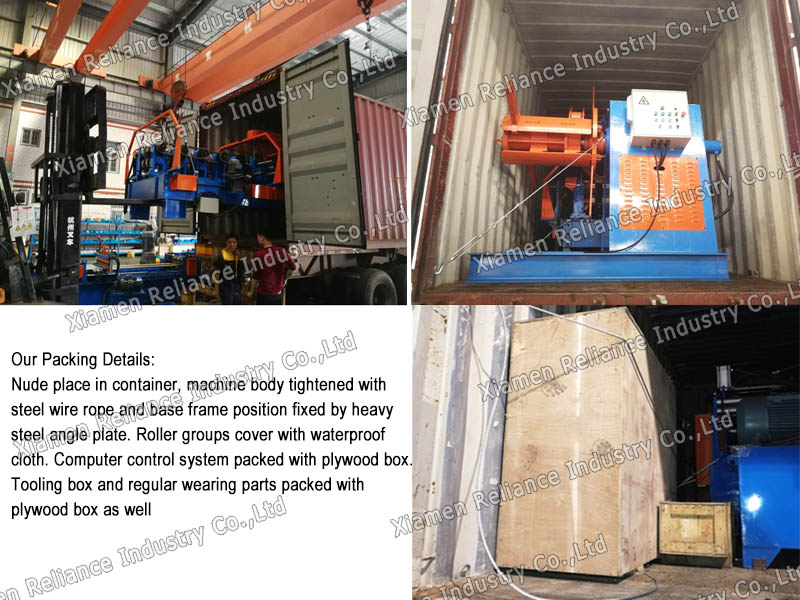

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Adaptable C50-200 C Purlin Machine/ C Channel Machine/Quick Change  C50-200 Purlin Roll Forming Machine/Small Size C Purlin Machine/C Purlin Roll Forming Machine:

This machine is widely used in PEB construction field. Its size range can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly punching accuracy, accurate dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.

Working Procedure:

Uncoiling– Leveling– Servo Feeding and Punching– Pre-notching– Roll Forming Machine–Post cutting– Collecting

Technical Details:

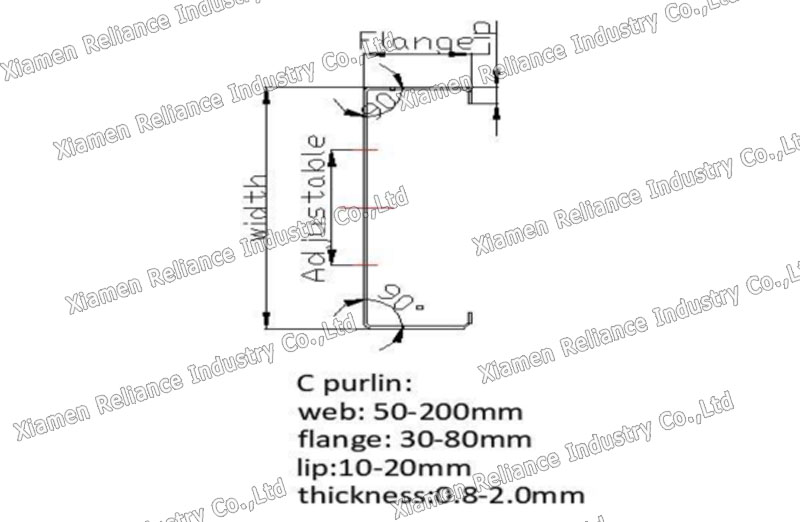

Available produced C purlin sizes:



Machine Specifications






Main machine color: Blue

Mesh cover: Orange

Suitable Raw Material


Galvanized /HR/CR Mild Steel



Coil width


Yield strength


Main Technical Parameters

Forming roller station quantity

14 stations

Material of rollers

GCr15 steel with quenched treatment

Diameter of shafts


Material of shafts

45﹟ casting steel

Line forming speed


Punching die material

Cr12 mould steel with quenched treatment

Cutting die material

Cr12 mould steel with quenched treatment

Control system

PLC(Siemens), Touch Screen(Siemens), Inverter (Schneider), Encoder(Omron)

Line power requirement

Main driven motor: 15KW

Size changing motor: 1*1.5KW, 2*0.75KW

Hydraulic Pack motor: 11KW

Electric voltage standard

As per customer requirements


Main Components:

3Ton Uncoiler Rack

Manual expanding mandrel and motor driven rotation

Work coil width: max 600mm

Pre-leveling & Pre-punching & Pre-cutting & Pre-notching Device

The section firstly making the strip material flat before feeding into roll forming machine

Then punching and notching process before going into roll forming process

The pre-cutting device only use during exchange coil strips

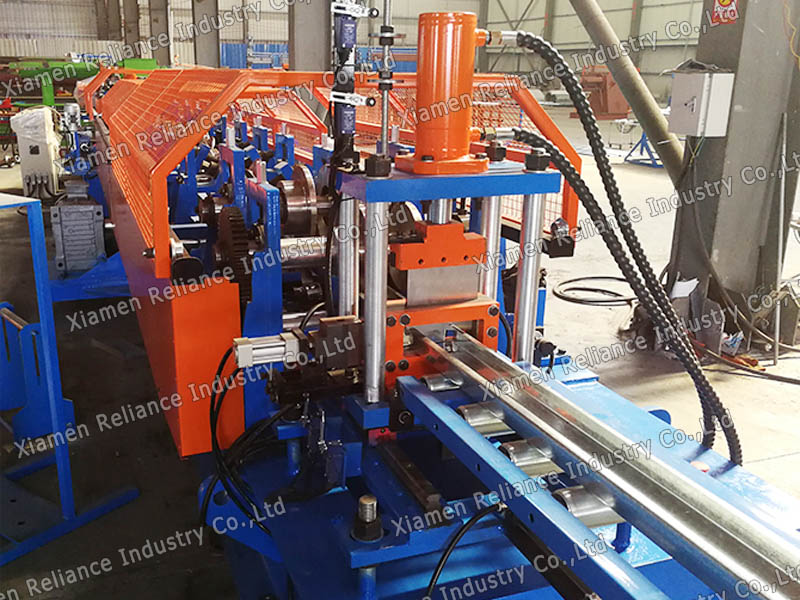

Main roll forming machine:

Driven type: gear sprocket with chain connection

Standard stand frame design with full mesh cover around main forming machine

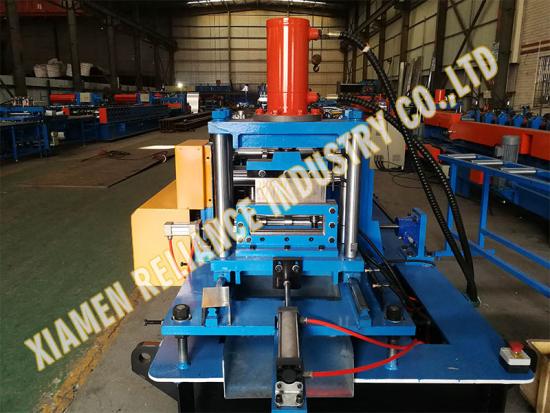

Hydraulic no-stop-cutting section

Post cutting for all c purlin profiles, all sizes sharing one cutting blade

Save time and high efficiency

PLC control cabinet

All international brand elements composited and qualified system

With portable controller for convenient work usage

Production run out table

Handel forming sheets for packing

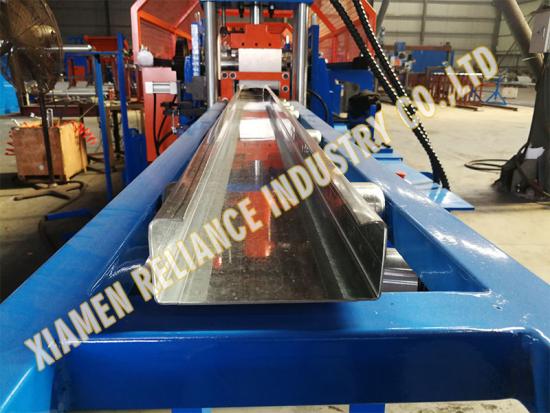

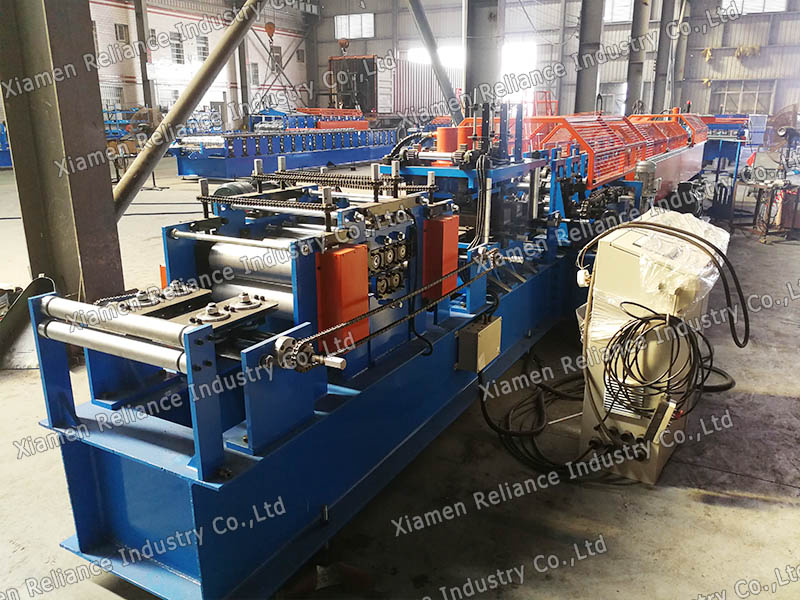

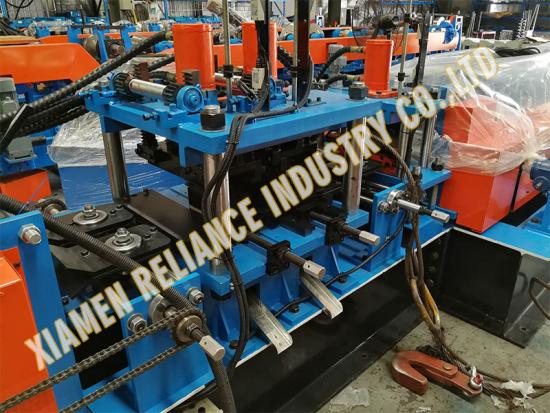

C50-200 auto c purlin machine:


C50-200 C Purlin roll forming machine.


Packaging Photos:
